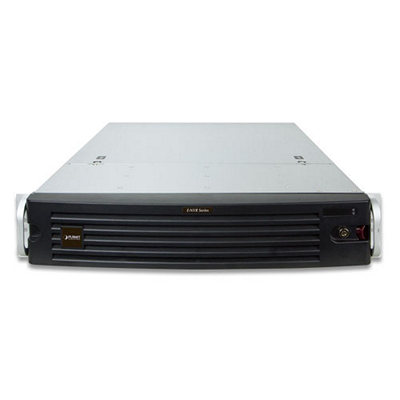

NVR-E6480 Planet Video Recorder

 High Level Surveillance Solution

PLANET NVR-E6480, a high-definition IP surveillance solution, is designed to work with PLANET E-series cameras or ONVIF cameras for traffic surveillance, public and other security monitoring applications. The NVR-E6480 is the Windows-embedded 64-channel NVR that can connect up to 64 IP cameras and supports 8 hard disks. The unit employs RAID 0/1 to optimize the process of securing data easily and quickly.
The NVR-E6480 features Gigabit Ethernet ports, eMap, video motion detection, automatic camera registration, and mobile apps for smart phone and tablet connectivity. The NVR-E6480, capable of recording 300Mbps of video bandwidth, supports a wide range of resolutions in H.264, MPEG-4 and M-JPEG formats. In addition, the NVR is able to work with extended software such as ALPR (Automatic License Plate Recognition) and IVS (Intelligent Video Surveillance). Through these value-added applications, the NVR is definitely a necessity to keep track of those critical moments saved as evidences when in need.

Specifications

Hardware
CPU: Intel Processor
RAM: 2GB
Operating System: Windows 7 Standard Embedded

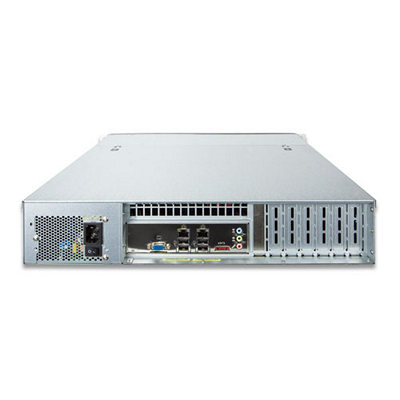

Ethernet: 2 x RJ45, 10/100/1000BASE-T
USB Interface: 6 x USB 2.0 for backup device and firmware upgrade
Video Interface: VGA video interface
Audio Interface: Mic-in, line-in and line-out

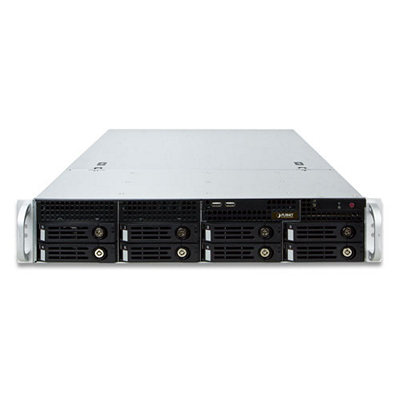

Storage Device: 8 x 3.5" SATA II hard disk connectors; up to 6TB per HDD
External Storage Interface: 1 x eSATA
LED: Power
Button: Power
Camera:
Max. Channels: 64-channel IP cameras

*Resolution 320 x 240, 1 Mbps bitrate, 30 FPS per camera
Function: Manual, auto or ONVIF search
Video:
Compression: H.264, MPEG-4, M-JPEG
Resolution: 10MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, VGA
Max. Live Video Frame Rate (Local Display): 6fps@10MP (1-ch), 15fps@5MP (1-ch), 8fps@4MP (1-ch), 15fps@3MP (1-ch), 30fps@2MP (1-ch), 30fps@1.3MP (1-ch), 30fps@1MP (1-ch), 30fps@VGA (1-ch)

*The above performance was tested with the following parameters: H.264 compression and 3Mbps bitrate
Audio:
Audio Type: 2-way
Live View:
Display Layout Mode: Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64
Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)
Manual Recording/ Snapshot: Instant recording upon mouse click/Instant snapshot upon mouse click or hot key
Dual Stream Management: Live view of stream 1 or stream 2 of dual stream devices
Event Panel: Displays event status upon alarm or upon connection loss or recovery
Instant Playback: Instant playback in live view window
E-map: Area maps with camera icons and small live view windows hyperlinks
Playback:
Video Search: Time/Event based
Playback Control: Continuous forward and backward playback with speeds 1x, 2x, 4x, 8x or frame-by-frame; pause; stop
Manual Snapshot: Instant snapshot from playback upon mouse click
Digital Zoom: Zoom in/out digitally by PiP (Picture-in-Picture)
Synchronized Playback: Up to 9 channels for local display; up to 64 channels for remote client
Video Export: Export video clips in AVI or RAW format
Recording:
Recording Throughput: Maximum total bitrate 300Mbps
Schedule Recording: Record video with user defined schedule
Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
Frame Rate Setting: Different recording frame rate settings for non-event and triggered event
Manual Recording: Instant recording upon mouse click
Dual Stream Management: Recording of stream 1 or stream 2 of dual stream devices
Recording Frame Rate: Max. 1920fps in total; max. 30fps per camera
Monitor:
Max. Local Display Resolution: 1920 x 1200
Network and Configuration:
Network Service: IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF
Triggers and Event:
Event Type: Video motion detection, passive IR sensor, external device through digital input, video loss and recovery, network loss and recovery, server loss and recovery, disk full, disk not found
Event Action: Record video, pop-up window with live video, switch to hotspot window, play beep sound, activate external device through digital output, upload snapshot to FTP server, execute system command to activate other programs, eMail notification with snapshots, command a PTZ device to go to a preset point
Manual Event: Manually activate external devices through digital output via live view monitor
Scheduler: Define the schedule of event manager
Management:
Max. Number of Clients: 1 local, 3 remote
Privileges: Live, Playback, Setup, Global
User Interface: Graphic local user interface (Operated by mouse, keyboard)
Web browser (Internet Explorer 7 or above)
CMS utility
App viewer
Multiple Languages Support: Arabic, Czech, Danish, German, Estonian, English, Spanish, Finnish, French, Hebrew, Hungarian, Indonesian, Italian, Japanese, Netherland, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese, Simplified Chinese, Traditional Chinese
Log Type: User Operation, Setup Device, Setup System, Setup Users, Setup Schedule, Setup Event, System Status, Request Log
Environment:
Power: 100-240V AC, 4-2A, 50-60Hz
Consumption: 200W
Operating Temperature: 0~40 degrees C
Humidity: 10~85% RH
Weight: 11.4 kg (with 1 system HDD and front cover)
Dimensions (W x D x H): 482 x 560 x 88 mm
