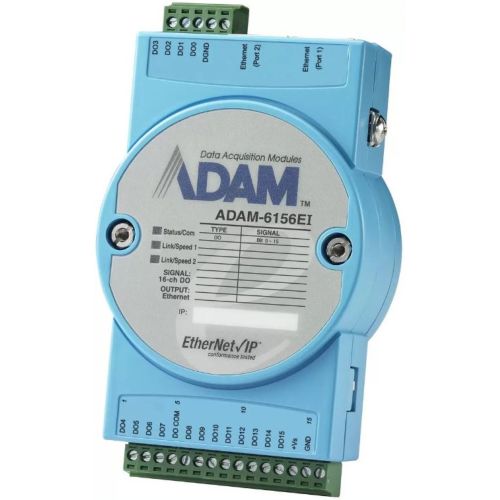

ADAM-6156EI-AE, 16ch digital output EtherNet/IP Fieldbus Remote I/O
ADAM-6156EI-AE
16ch digital output EtherNet/IP Fieldbus Remote I/O
SPEDIZIONE GRATUITA
Digital Output
Channels: 16
Output Voltage Range: 8 ~ 35 VDC
Normal Output Current: 100 mA (per channel)
General
LAN: 10/100Base-T(X)
Power Consumption: 3.2 W @ 24 VDC
Connectors: 2 x RJ-45 LAN, (Daisy Chain) Plug-in screw terminal block (I/O and power)
Watchdog: System (1.6 second)
Power Input: 10 ~ 30 VDC
Protection
Over Voltage Protection: ±35 VDC
Isolation Protection: 2,500 VDC
Power Reversal Protection
Environment
Operating Temperature: -10 ~ 70°C (14 ~ 158°F)
Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity: 20 ~ 95% RH (non-condensing)
Storage Humidity: 0 ~ 95% RH (non-condensing)
