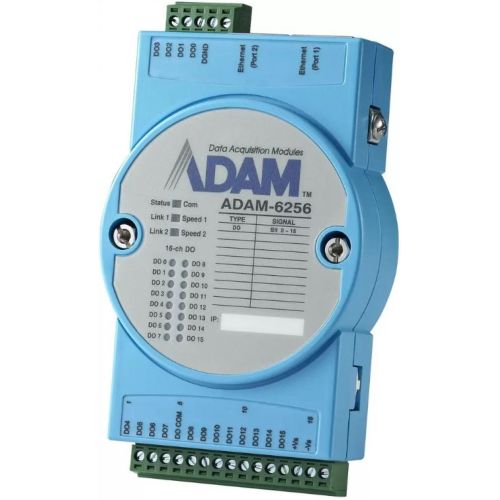

ADAM-6256-B
16ch digital output IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O
Bisogno di aiuto?
Protocols
Features
- Daisy chain connection with auto-bypass protection
- Remote monitoring and control with smart phone/pad
- Group configuration capability for multiple module setup
- DI/O LED Indication
- Flexible user-defined Modbus address.
- Intelligent control ability by Peer-to-Peer and GCL function
- Multiple protocol support: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
- Web language support: XML, HTML 5, Java Script
- System configuration backup
- User Access Control
Specifications
Digital Output
Channels: 16 (Sink Type)
Output Voltage Range: 10 ~ 30 VDC
Normal Output Current: 100 mA (per channel)
Pulse Output: Up to 5kHz
Delay Output: High-to-Low and Low-to-High
General
Ethernet: 2-port 10/100 Base-TX (for Daisy Chain)
LED Indication: 16 DO
Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Connector: Plug-in 5P/15P screw terminal blocks
Power Input: 10 - 30 VDC (24 VDC standard)
Watchdog Timer: System (1.6 seconds) Communication (Programmable)
Dimensions: 70 x 122 x 27 mm
Protection:
Built-in TVS/ESD protection
Power Reversal protection
Over Voltage protection: +/- 35VDC
Isolation protection: 2500 VDC
Power Consumption: 3.2 W @ 24 VDC
Environment
Operating Temperature:
-10 ~ 70°C (14 ~ 158°F)
-40 ~ 70°C (-40~158°F) (B version)
Storage Temperature:
-20 ~ 80°C (-4 ~ 176°F)
-40 ~ 80°C ( -40~176°F) (B version)
Operating Humidity: 20 ~ 95% RH (non-condensing)
Storage Humidity: 0 ~ 95% RH (non-condensing)
