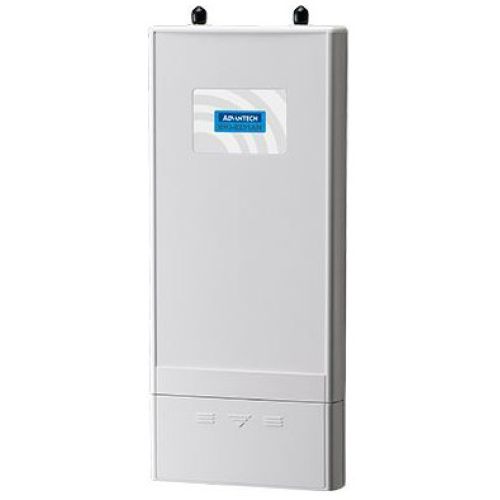

EKI-6331AN-EU-BE ADVANTECH Access Point

Features

• Complies with IEEE 802.11 a/n
• IP55-rated waterproof design
• MIMO 2 x 2 11n
• External RP-SMA connectors for 2T2R antennas
• High output power
• Passive 24 V PoE
• WPA/WPA2-Enterprise encryption for highly secure wireless networks
• WEP/WPA/WPA2/IEEE 802.1x authentication support
• IGMP snooping protocol support

Introduction

The EKI-6331AN is a feature-rich wireless AP/client that provides reliable 5-GHz wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment
of this AP/client, even where DC power availability may be low. As an 802.11n-compliant device, the EKI-6331AN provides data rates six times higher than legacy 802.11a devices.
With MIMO 2 x 2 technology, the EKI-6331AN provides robust wireless connectivity and a high throughput rate for wireless transmission. Furthermore, support for WMM and IGMP
snooping protocols ensures that the EKI-6331AN can effectively improve the reliability of wireless connections, especially in applications that require high throughput data transmission.
To secure wireless connections, the EKI-6331AN implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.

Specifications

Standard Support

Wireless: IEEE 802.11 a/n
Ethernet: IEEE 802.3u MDI / MDIX 10/100 Fast Ethernet
LAN:
IEEE 802.11a wireless LAN interface
IEEE 802.11n wireless LAN standard
Passive 24 V PoE, max. distance: 50 meters

Certification:
FCC 15B/C
EN300328 V17.1
EN301489 -1/-17
EN55022/24
EN60950
Telec

Data Rates:
11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps
auto fallback
11n: HT20 MCS0 ~ 15 / HT40 MCS0 ~ 15

Physical Specifications

Power: DC 24 V / 1A; AC Adapter 100 V ~ 240 V
Dimensions (W x H x D): 111 x 256 x 48 mm (4.37" x 10.08" x 1.89")
Mounting: Wall, Pole
Weight: 0.5 Kg

Environment

Operating Temperature: -20 ~ 70 °C (-4 ~ 158 °F)
Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F)
Humidity: 10% ~ 95% non-condensing

Interface Operation Modes

Access Point (AP) / Client

Antenna

Default external 5 dBi Omni antenna
2 x RP-SMA connectors (female) for RP-SMA antennae (male)

Other Features

Management: Telnet, FTP, SNMP, Web UI
Security: Open System , Shared Key, Lagacy 8021X, WPA, WPA2, WPA-PSK (TKIP), WPA2-PSK(AES)
Wireless: Radio on/off, WMM/Regatta Mode, Output Power Control, Fragmentation Length, Beacon Interval, RTS/CTS threshold, DTIM Interval
