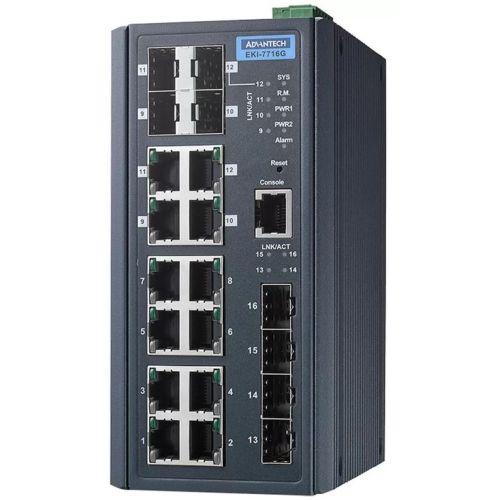

EKI-7716G-4F4CI-AE ADVANTECH Gigabit Managed Switches

Features

• 8 x Gigabit Ethernet + 4 x Gigabit SFP + 4 x Gigabit copper/SFP combo ports
• SFP socket for easy and flexible fiber expansion
• Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/ STP, and MSTP (802.1w/1D/1s)
• IXM function enables fast deployment
• Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
• Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
• NEMA TS2 for traffic control
• EN50121-4 approval for railway trackside deployment
• Wide operating temperature range of -40 ~ 75°C
• Dual 12 ~ 48 VDC power input and 1 x relay output

Introduction

The EKI-7716G-4F4C and EKI-7716G-4F4CI support 8 Gigabit Ethernet, 4 Gigabit SFP (mini-GBIC), and 4 Gigabit combo ports. They provide abundant port options for connecting
to various device types. The series are embedded with Advantech IXM function for fast deployment, which can dramatically save on engineering time and costs. These switches also
support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro redundancy for ultra-high-speed recovery times
of <20 ms. The EKI-7716G-4F4CI in particular also features a wide operating temperature of -40 to 75°C and a NEMA TS2 rating, making it ideal for use in traffic applications. The
EKI-7716G series also meets the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.3ab, 802.3z, 802.1D, 802.1w, 802.1s, 802.1P, 802.1Q, 802.1X
LAN: 10/100/1000BASE-TX, optional 100BASE-FX, 1000BASE-SX/LX/LHX/XD/ZX/EZX
Transmission Distance:
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45
cable suggested for both Fast Ethernet/Gigabit port)
SFP: Up to 110 km (depends on SFP)

Transmission Speed:
Gigabit Ethernet: 10/100/1000 Mbps
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

Interface

Connectors:
8 x RJ45 (Gigabit Ethernet)
4 x SFP (mini-GBIC)
4 x RJ45/SFP (mini-GBIC) combo ports
6-pin screw terminal block connector
(4-pin for Power, 2-pin for Relay)
LED Indicators:
PWR1, PWR2, SYS, Alarm and R.M.
10/100/1000T (X): Link/Activity,
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Link/Activity
Console: RS-232 (RJ45)

Network Management

Configuration: Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6
VLAN: IEEE 802.1Q, GVRP, Port-based VLAN
Redundancy: Advantech X-Ring, 802.1w/1D/1s RSTP/STP/MSTP
Security: IP Security, SSH, SSL, SNMPV3, HTTPS, IP Source Guard, DHCP Snooping, ARP Spoofing Prevention, 802.1X, TACACS+, Access Control List
Traffic Control: IGMP Snooping/Query for Multicast Group Management, Port Trunking, Static/802.3ad, LACP Rate Limit and Storm Control, IEEE 802.1p QoS CoS/TOS/ DSCP Priority Queuing, IEEE 802.3x Flow Control
Diagnostics: Port Mirroring, Real-Time Traffic Statistic, MAC Address Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON

Mechanism

Enclosure: IP30, metal shell with solid mounting kits
Dimensions (W x H x D): 74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
Mounting: DIN-rail, Wall mount

Power

Power Consumption: 15W @ 48V (Full Load)
Power Input: 12-48 VDC, Redundant Dual Power Input
Fault Output: 1 Relay Output

Protection

Power Reverse: Present
Overload Current: Present
