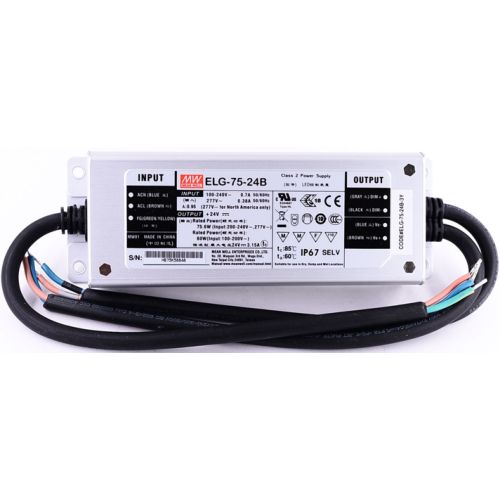

ELG-75-24B-3Y Mean Well AC DC Driver Led

 Features

• Constant Voltage + Constant Current mode output
• Metal housing design with functional Ground
• Built-in active PFC function
• Class 2 power unit
• No load / Standby power consumption <O.5W
• lP67/ IP65 rating for indoor or outdoor installations
• Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smarttimer dimming; DALI
• Typical lifetime>5000O hours
• 5 years warranty

Applications

1. LED Street lightining
2. LED architectural lighitning
3. LED bay lightning
4. LED floodlightining
5. Type "HL" for use in Class I, Division 2 hazardous (Classified) location

Description

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and
constant current output. ELG-75 operates from 100~305VAC and offers models with different
rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the
fanless design, the entire series is able to operate for -40°C ~ +85°C case temperature under free
air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series
to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as
dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Specifications

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 12~24V
RATED CURRENT: 3.15A
RATED POWER:
 200VAC ~ 305VAC: 75.6W
 100VAC ~ 180VAC: 60W
RIPPLE & NOISE (maX.): 200mVp-p

INPUT

VOLTAGE RANGE: 100 ~ 305VAC
FREQUENCY RANGE:  47 ~ 63HZ
EFFICIENCY (Typ.):  88%
AC CURRENT:  0.7A/115VAC   0.45A/230VAC   0.38A/277VAC
