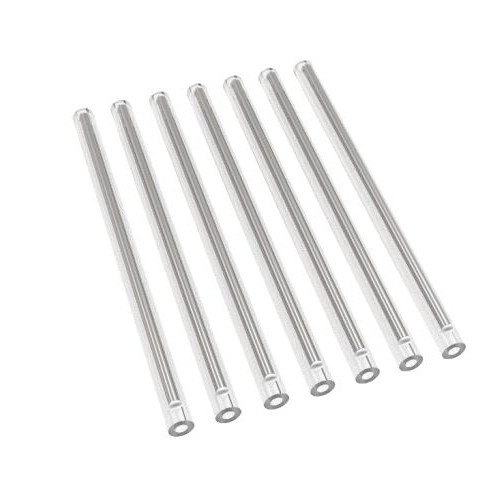

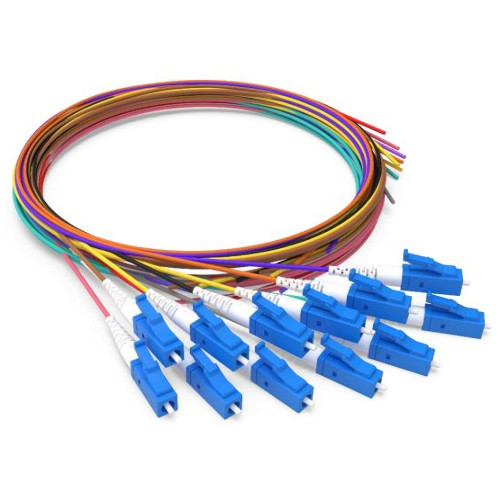

FD01SPS112SA1, DIN Rail box fully loaded 12FO SC/UPC Single Mode G657A1 LSZH include (12 Pigtail Rainbow and fiber optic splice protection sleeve)
FD01SPS112SA1
DIN Rail box fully loaded 12FO SC/UPC Single Mode G657A1 LSZH include (12 Pigtail Rainbow and fiber optic splice protection sleeve)
SPEDIZIONE GRATUITA
Certificati
Introduction

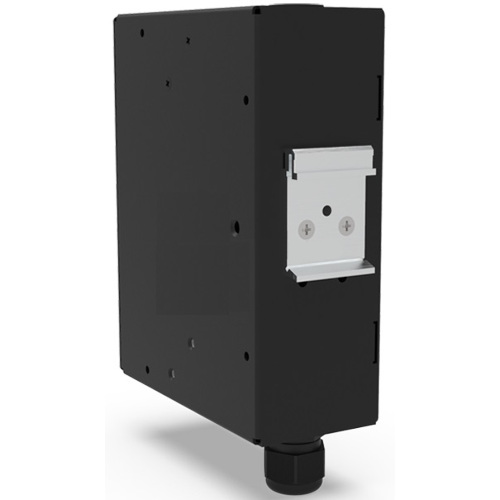

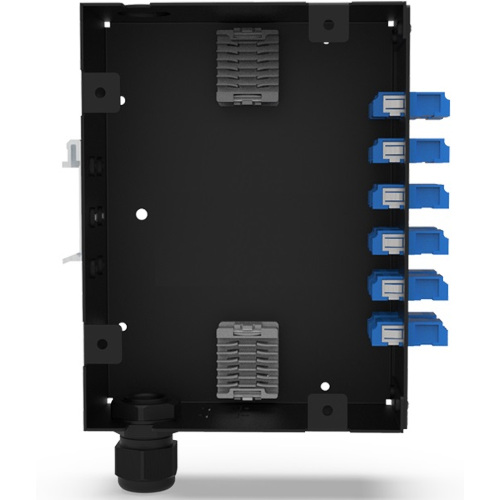

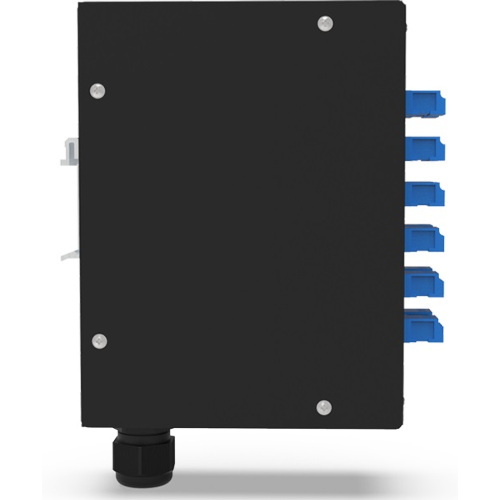

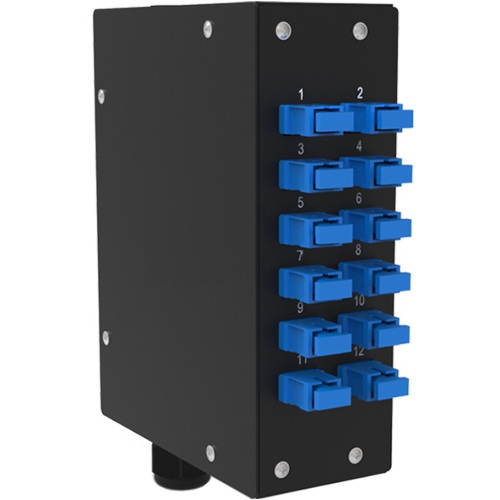

compact & low-profile modular DIN RAIL MODULAR BOX is designed for use in a wide range of industrial applications.
This compact fibre din box accepts up to 24 fibers in LC configuration or 6 copper keystones jacks.
Modular small DIN rail-mounted enclosure box for multi-application with MPO System, Pre-terminated cables or conventional splicing.
Features and Benefits
- Accommodates up to 24FO in LC and 12 in SC
- Fusion splicing, pre-terminated loose tube and tight buffered cables
- MTP/MPO Pre-terminated cabling solution
- Top and Bottom cable entries
- 6 Copper jacks patch panel option
- FTTx Deployment & Enterprise network
- Industrial, Power system and control
- Rail signalling and control networks
Specifications
| Mounting Type | Din Rail |
|---|---|
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Dimensions (W x D x H in MM) | 48 x 123.20 x 162 |
| Net Weight | 1.20Kg |
| Opening Type | Side Wall Screws |
| Cable Entry Direction | Top and Bottom |
| Splicing Capacity | 24 in LC / 12 in SC |
| Splice Holder | 40MM Heat shrink sleeves, Available in Crimp Style or Ribbon |
| Copper Capacity | 6 ports keystone jacks |
