MP3PP05, 1U 19 MODULAR SLIDING PATCH PANEL 3 SLOT LGX UNLOADED WITH FRONT MGMT
MP3PP05
1U 19 MODULAR SLIDING PATCH PANEL 3 SLOT LGX UNLOADED WITH FRONT MGMT
Bisogno di aiuto?
Certificati
Introduction
sliding patch panel accepts 3 LGX pass-thru adapter plates for a total of 72FO with LC configuration
Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing

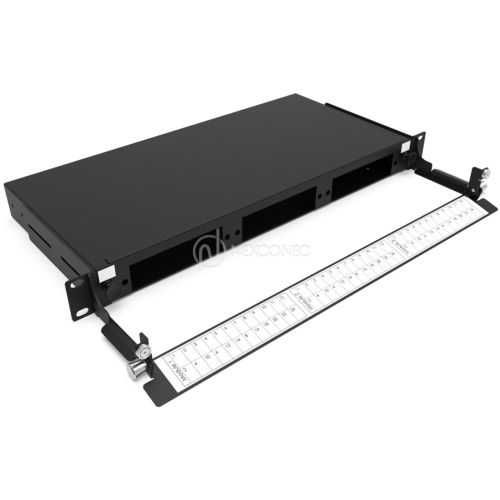

Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling

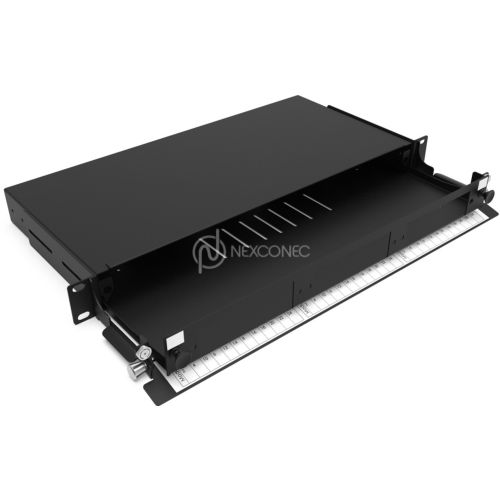

Panel is supplied unloaded and the modules and plates are supplied separately.
Features and Benefits
- 3 Slots LGX in 1U space
- Up to 72FO in LC

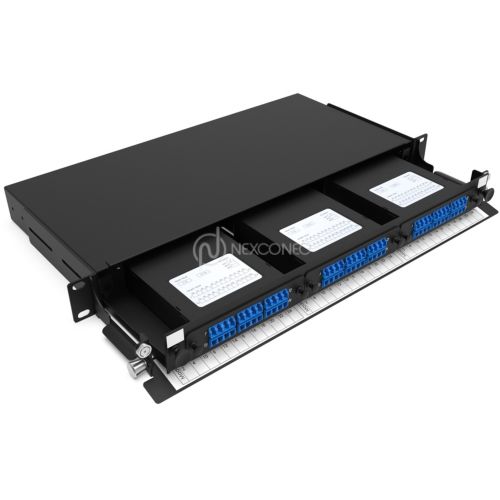

- Modular with MTP Cassette or Adapter plates
- RoHS, REACH and SVHC compliant
- Enterprise network & Datacentre
- Indoor application

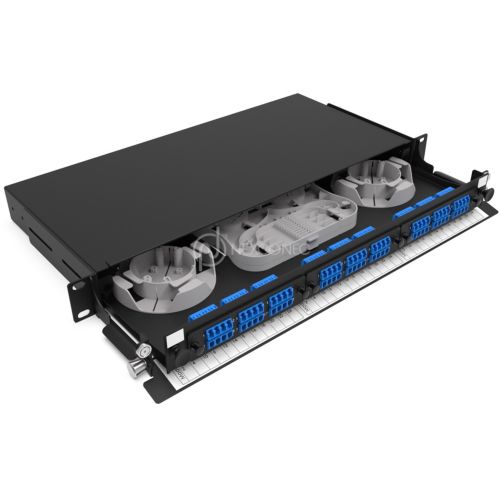

- Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing
Specifications
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 485 x 306.5 x 44 |
| Net Weight | 3Kg |
| Opening Type | Sliding tray |
| Access Type | Front access |
| Front Cable Management | Optional hinged drop-down door |
| Cable Entry Direction | Rear |

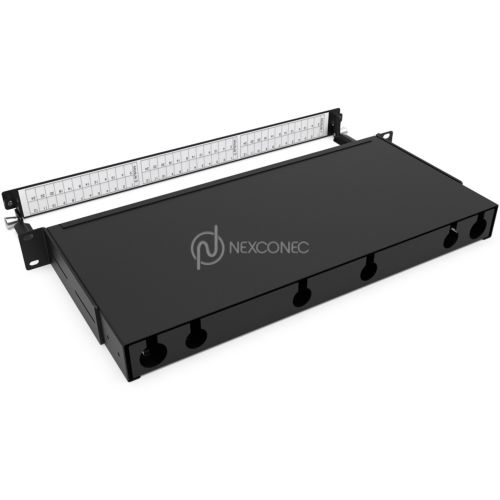

| Rear Cable Management | 6 cable entries |
| Slot Type | LGX Modules and LGX Plates |
| Number of Slots | 3 |
| Fibre Capacity | 72 in LC |
