MP3PP07, 1U 19 MODULAR FIXED FRAME 3 SLOT LGX UNLOADED WITH FRONT & REAR MGMT
MP3PP07
1U 19 MODULAR FIXED FRAME 3 SLOT LGX UNLOADED WITH FRONT & REAR MGMT
Bisogno di aiuto?
Certificati
Introduction

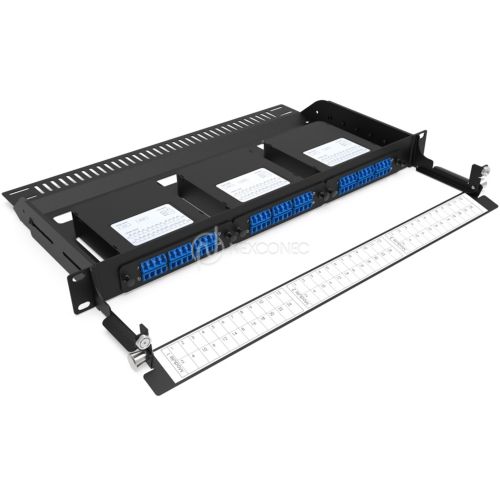

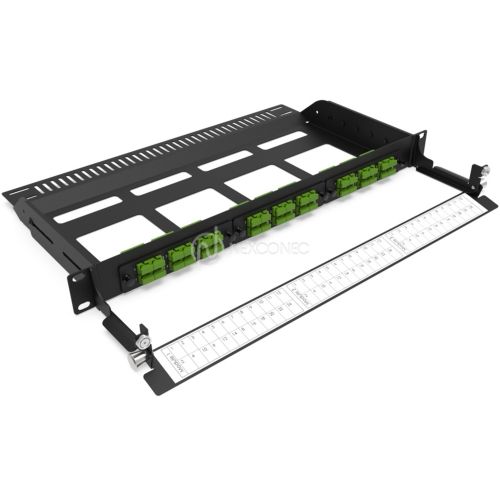

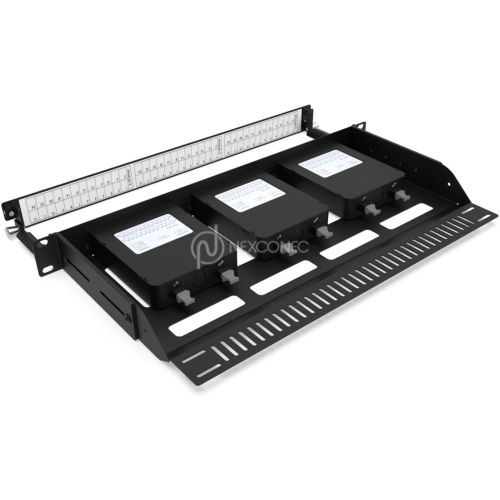

high density fiber optic modular fixed frame is designed to provide housing for connections from an incoming preterm or trunks on the rear to patch cords on the front
The Open frame allows for quick and easy installation
It accepts up to 3 LGX Thru Adapter Plates, MTP/MPO Cassettes or Splice Cassettes.
Panel is supplied unloaded and the modules and plates are supplied separately.
Features and Benefits
- 1U height with LGX Adapter Plate or LGX Modules
- Up to 72FO in LC / 36FO in SC
- Channel to route the patch cords to the rear of the rack within the 1U space
- RoHS, REACH and SVHC
- Datacenter & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables
Specifications
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 435 x 341.2 x 43.4 |
| Net Weight | 2.3 kg |
| Opening Type | Fixed |
| Access Type | Front access |
| Front Cable Management | Removable hinged door |
| Cable Entry Direction | Rear and Front |
| Rear Cable Management | Support bar |
| Slot Type | LGX |
| Number of Slots | 3 |
| Fiber Capacity | Up to 72 in LC / 36FO in SC |
