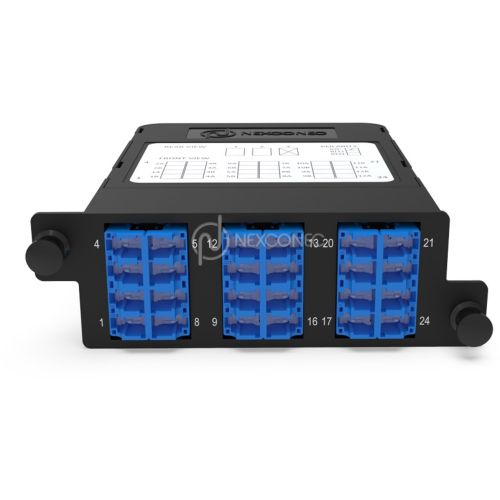

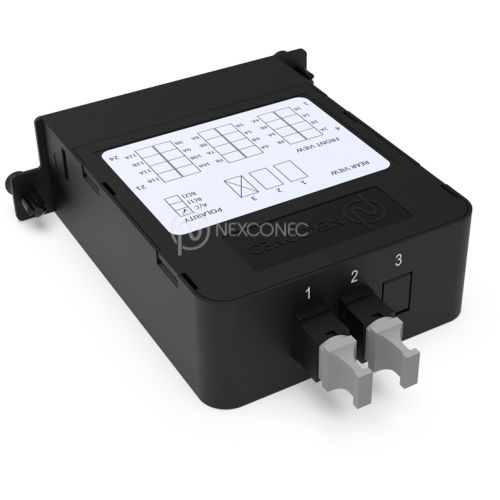

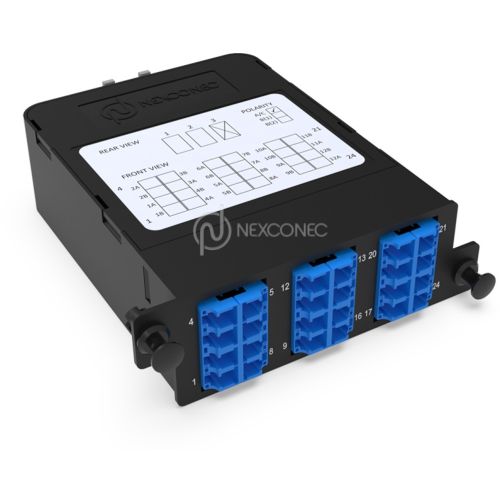

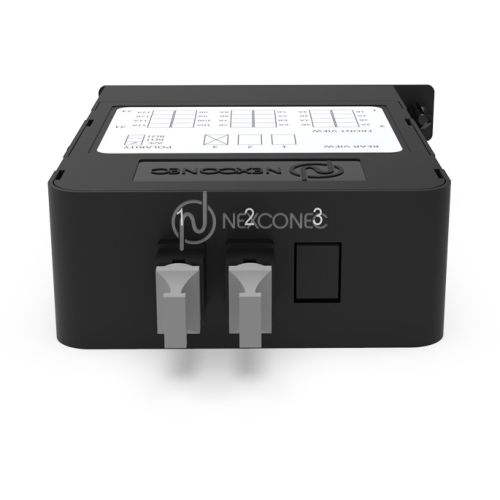

MP4CA01-sh, SHUTTERED CASSETTE 2x ELITE MPO(M)-PREMIUM LC/UPC 24FO SM G657A2
MP4CA01-sh
SHUTTERED CASSETTE 2x ELITE MPO(M)-PREMIUM LC/UPC 24FO SM G657A2
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction
HD cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for upto 100G applications to interconnect backbone with discrete connections
The HD cassettes are designed to easily plug into NEXCONEC HD 1U 4 slot chassis and each chassis can populate upto 96F
The cassettes eliminate the need for splicing reducing costs
The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
Features and Benefits
- Conform to IEC, EIA-TIA, and Telcordia performance requirements

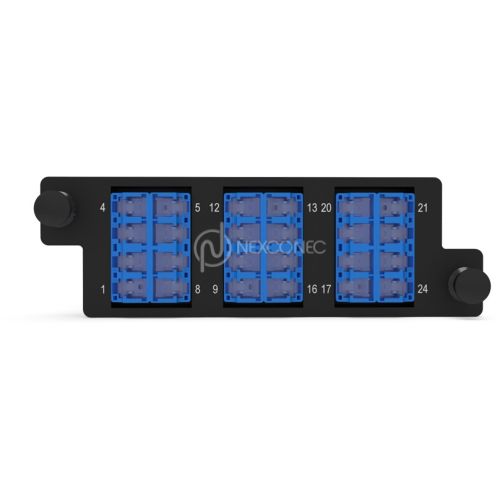

- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Available in 12, and 24 fibre count
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
Specifications
| Footprint | HD MP4 |
|---|---|
| Material | ABS + PC |
| Housing Color | Black |
| Application | HD Panels |

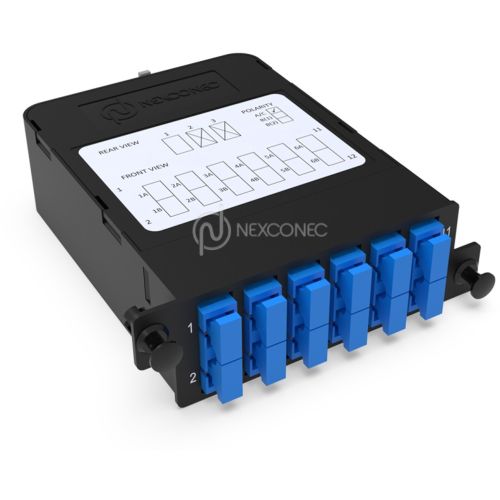

| Fiber Capacity | 24FO in LC / 12FO in SC |
| Adapters Ports | Shuttered laser & Dust proof LC Adapters |
| Dimensions (WxDxH in mm) | 106 x 110 x 33.60 |
| Weight KG | 0.25 |
| Parameters | Units | SM MPO | SM LC/SC |
|---|---|---|---|
| Avg/Max IL - Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 |
| Return loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 |
| Avg/Max IL- Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return loss (PC/APC) | dB | ≥ 60 | ≥ 60 |
