MP4SP06VE, SPLICE CASSETTE SC/UPC 12FO MM RBS OM4 EV TIGHT BUFFERED OR EASY STRIP
MP4SP06VE
SPLICE CASSETTE SC/UPC 12FO MM RBS OM4 EV TIGHT BUFFERED OR EASY STRIP
Bisogno di aiuto?
Certificati
Introduction

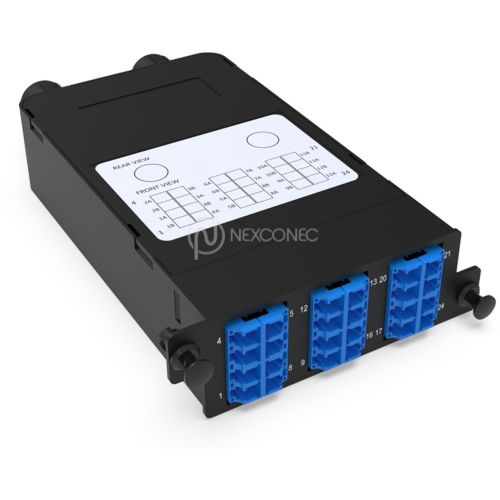

HD splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails.

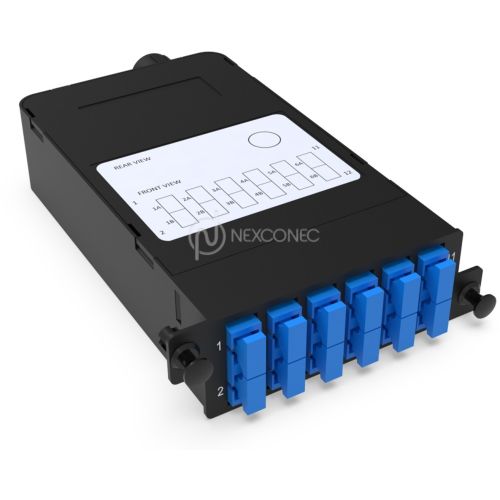

For up to 24 splices in LC configuration or 12 in SC.

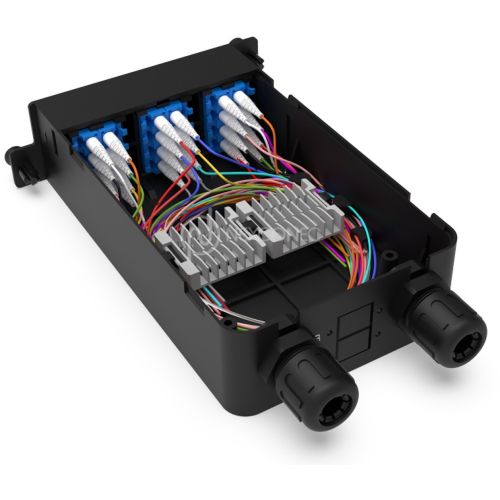

The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type.
Features and Benefits
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Up to 24 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
Specifications
| Footprint | HD MP4 |
|---|---|
| Material | ABS + PC |
| Housing Color | Black |
| Application | HD Panels |
| Fiber Capacity | 24FO in LC / 12FO in SC |

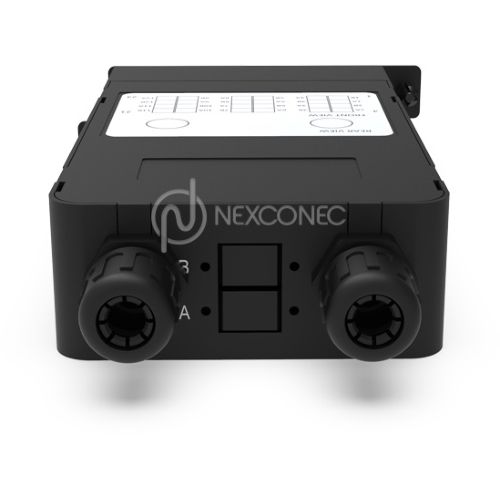

| Rear Cable Entries | 2x Cable gland M12 |

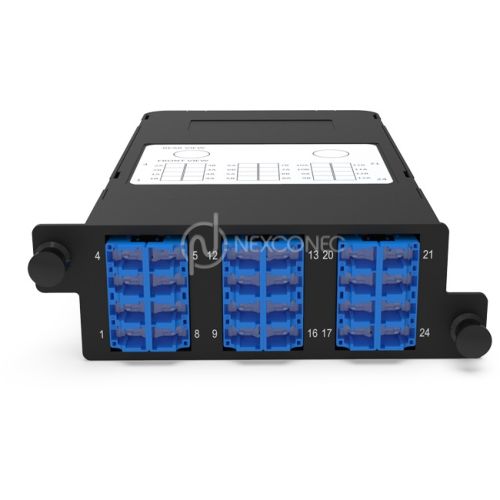

| Adapters Ports | Shuttered laser & Dust proof LC Adapters |
| Splice Holder | 40MM Heat shrink sleeves, Available in Crimp Style or Ribbon |
| Max Cable Diameter to Use | 8 mm |
| Dimensions (WxDxH in mm) | 106 x 145 x 33.60 |
| Weight KG | 0.25 |
| Parameters | Units | MM LC/SC |
|---|---|---|
| Avg/Max IL - Standard | dB | ≤ 0.18/0.30 |
| Return loss (PC/APC) | dB | NA |
| Avg/Max IL- Premium | dB | ≤ 0.12/0.15 |
| Return loss (PC/APC) | dB | NA |
