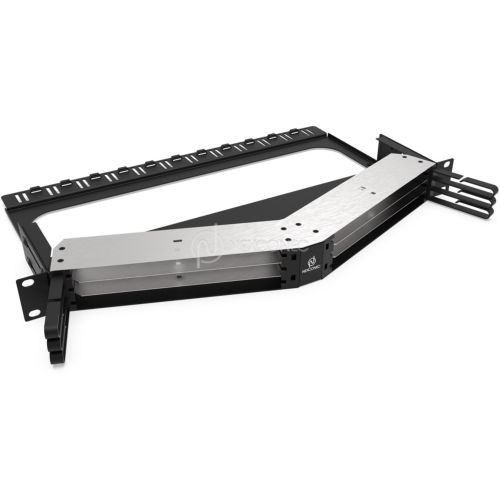

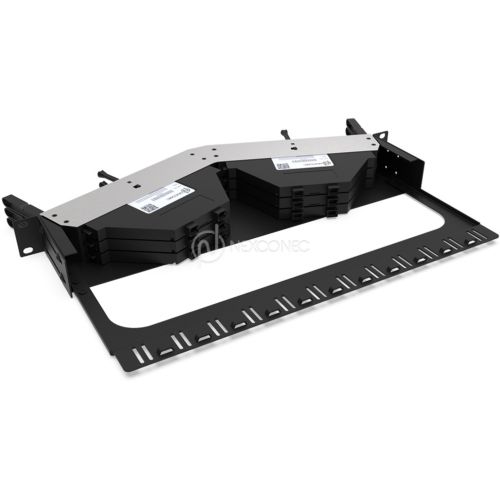

NGXPP02, 1U 19 ANGLED MODULAR FIXED FRAME 6 SLOT NGX UNLOADED WITH REAR MGMT
NGXPP02
1U 19 ANGLED MODULAR FIXED FRAME 6 SLOT NGX UNLOADED WITH REAR MGMT
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction

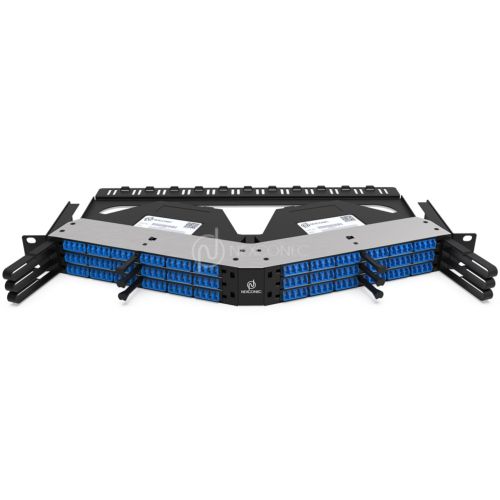

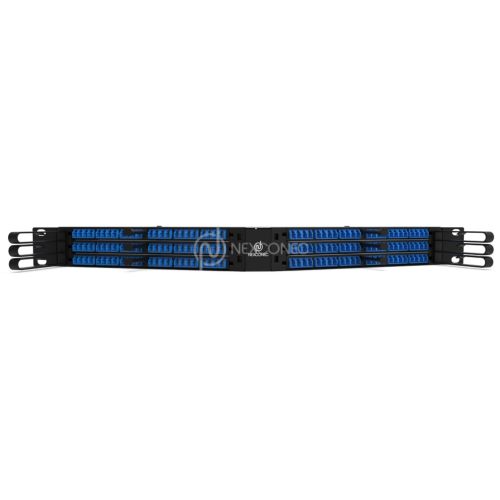

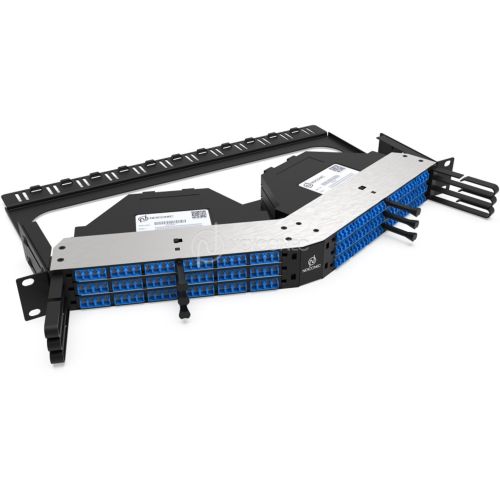

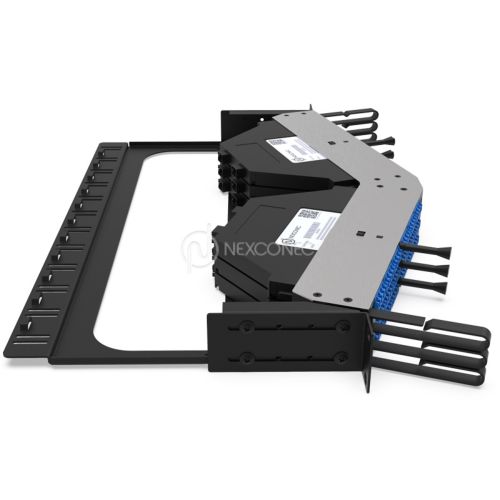

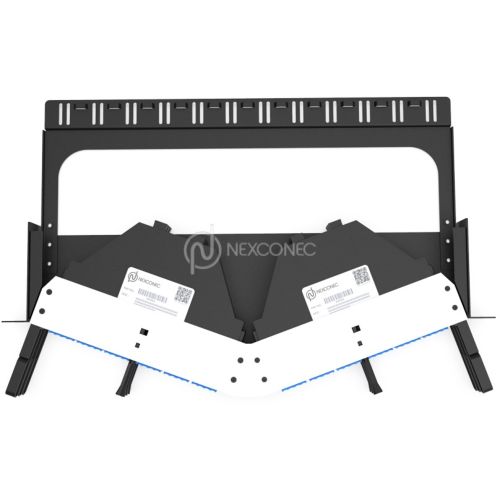

NGX Angled High-Density Frame accepts up to 6 NGX Modules for a total of 144FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Angled front with side manager for a better routing of the cabling.
Features and Benefits
- 6 Slots NGX in 1U space
- Up to 144FO with LC
- Modular with MTP/MPO, Splicing, Direct Patching, Pre-terminated module or Copper module
- Open chassis free access module installation with front and rear access
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Cables
- Patent pending
Specifications
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel & Stainless Steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | Optional |
| Dimensions (W x D x H in MM) | 488 x 316.6 x 44 |
| Net Weight | 4.5KG |
| Opening Type | Fixed tray |
| Access Type | Front & Rear loading of modules |
| Front Cable Management | Side cable manager |
| Cable Entry Direction | Rear |
| Rear Cable Management | Cable manager |
| Slot Type | NGX Modules |
| Number of Slots | 6 |
| Fibre Capacity | 144 in LC |
