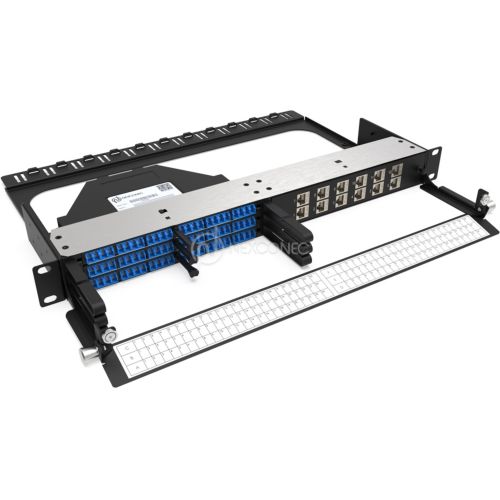

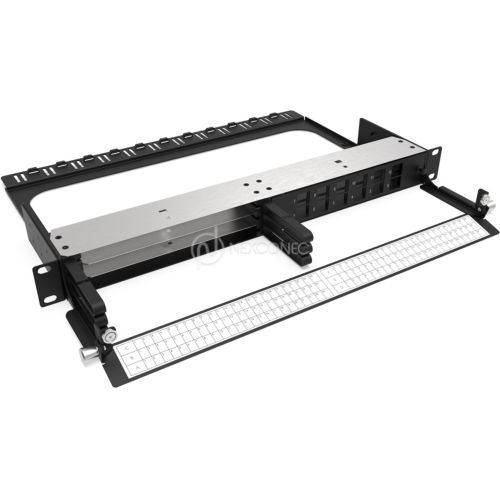

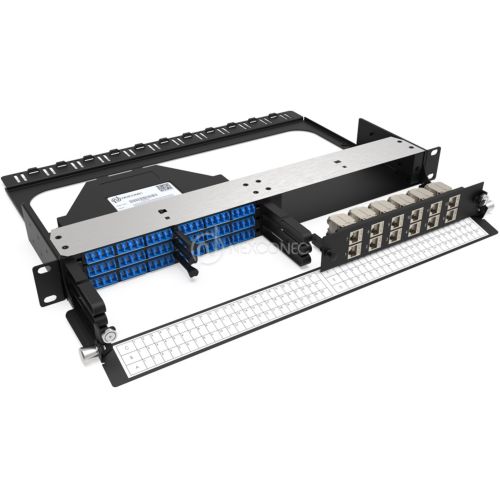

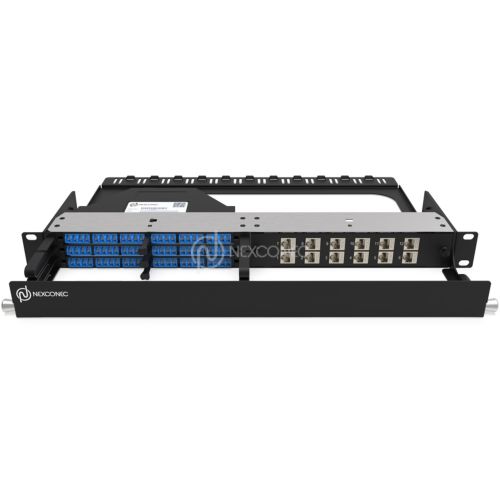

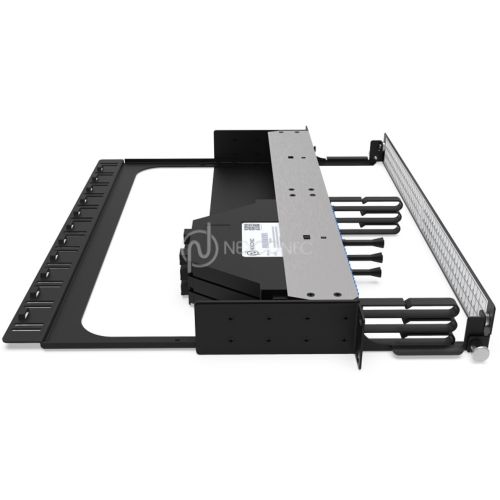

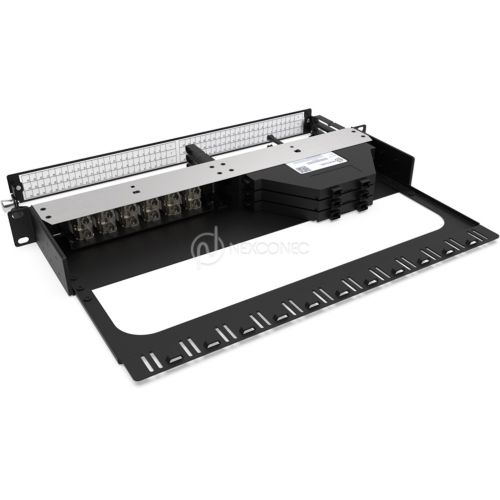

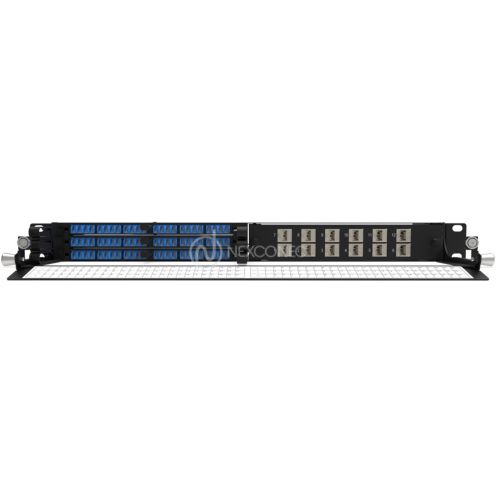

NGXPP03, 1U 19 MODULAR FIXED FRAME 3 SLOT NGX / 12 PORT KJ UNLOADED WITH FRONT & REAR MGMT
NGXPP03
1U 19 MODULAR FIXED FRAME 3 SLOT NGX / 12 PORT KJ UNLOADED WITH FRONT & REAR MGMT
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction
NGX High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.
Features and Benefits
- 3 Fiber slots NGX in 1U space
- Up to 72FO with LC
- Up to 12 Keystones Jacks 6/6A UTP & STP
- Modular Fiber connectivity with MTP/MPO, Splicing, Direct Patching, Pre-terminated module
- Open chassis free access module installation with front and rear access
- Datacenter & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Cables
- Patent pending
Specifications
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel & Stainless Steel |
| Housing Color | Black & Silver |
| Application | Indoor IP20 |
| Dimensions (W x D x H in MM) | 485 x 365.4 x 44 |
| Net Weight | 5KG |
| Opening Type | Fixed Tray |
| Access Type | Front & Rear loading of modules |
| Front Cable Management | Hinged drop down door |
| Cable Entry Direction | Removable rear manager |
| Rear Cable Management | Cable manager |
| Slot Type | NGX Modules |
| Number of Slots | 3 NGX Fiber Module / 12Ports Keystone Jacks |
| Fiber Capacity | 72 in LC |
