NGXSP03E-st, SPLICE CASSETTE LC/UPC 24FO MM RBS OM3 AQUA TIGHT BUFFERED OR EASY STRIP
NGXSP03E-st
SPLICE CASSETTE LC/UPC 24FO MM RBS OM3 AQUA TIGHT BUFFERED OR EASY STRIP
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction

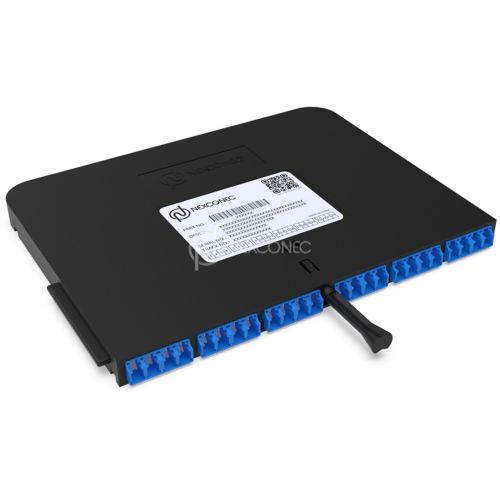

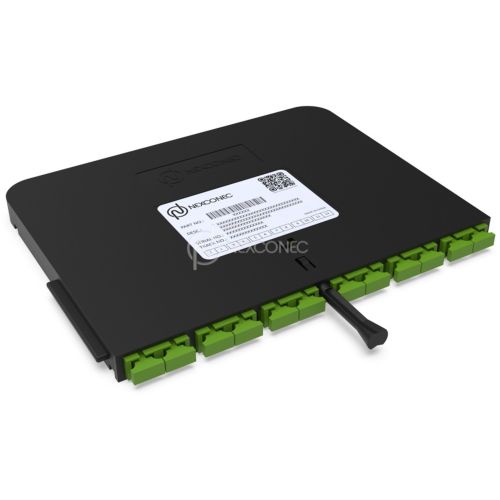

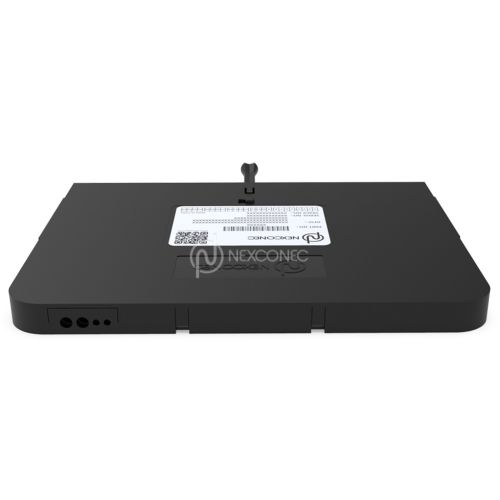

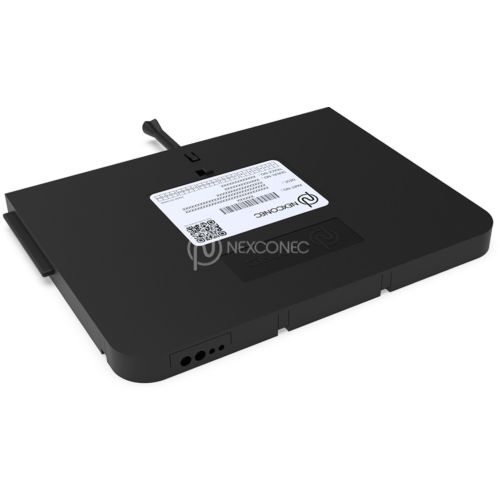

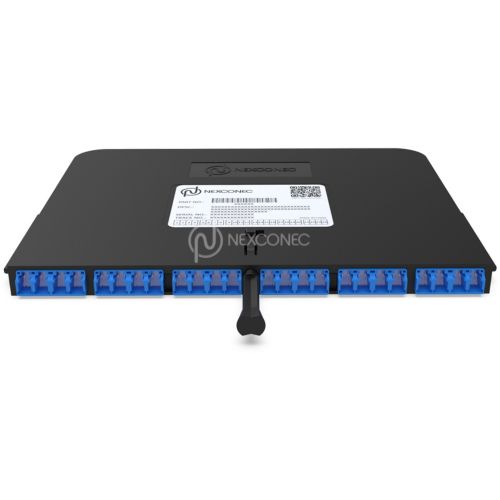

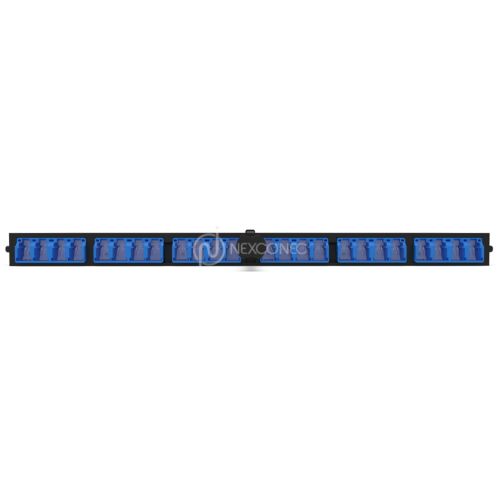

NGX SPLICING cassettes are designed for splicing up to 24F in a cassette.
The NGX fiber splice cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC.
The high density splice cassettes are preloaded with adaptors and pigtails supplied with splicing accessories.
Features and Benefits
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in 12F and 24F options
- Available in Single and Multimode options
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABS+PC material
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
Specifications
| Footprint | NGX |
|---|---|
| Dimensions (WxDxH) | 182.2 x 140 x 12.6 mm |
| Material | ABS + PC |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | 24FO in LC / 12FO in SC |
| Splice Holder | 40MM Heat Shrink Sleeves, Available in Crimp Style or Ribbon |
| Max. Cable Diameter to Use | 5.5 mm |
| Weight | 0.25 Kg |
| Parameters | Units | MM LC/SC |
|---|---|---|
| Avg/Max IL - Standard | dB | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | NA |
| Avg/Max IL- Premium | dB | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | NA |
