UC-8112-LX-STK
UC-8112-LX starter kit
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Overview
Moxa’s UC-8100 series starter kit is an ideal hardware and software package for system evaluation. Containing a UC-8100 computer, optional cellular and Wi-Fi modules, and various software packages, this compact starter kit helps users deploy the system architecture in a short time.
The starter kit offers cellular or Wi-Fi modules that users can easily install to enable wireless communication between the UC-8100 and peripheral devices. In addition, system integrators can easily evaluate the feasibility of using remote management for specific industrial tasks, such as data acquisition, and system integration.
NOTE: The UC-8112-LX-STK does NOT include a cellular/WiFi module. To do testing and development, you will also need to purchase at least one cellular/WiFi module package. See “Ordering Information” below for a full list of the package contents.

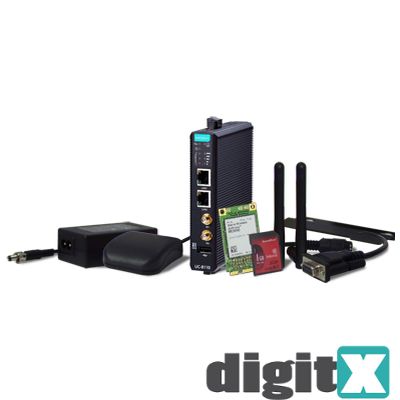

Package Content
UC-8112-LX-STK Starter Kit Package
- Console cable x 1
- GPS antenna x 1
- LTE antenna x 2
- WiFi antenna x 2
- Wall mounting kit x 1
- 1 GB SD x 1
- Power cord x 1
- Power adapter x 1
- Wi-Fi antenna cable x 1
- Cellular antenna cable x 1
WiFi Module Package
- Wi-Fi module x 1
- Wi-Fi antenna cable x 1
- Mounting screws x 2
LTE Cellular Module Package
- Cellular module x 1
- Cellular antenna cable x 1
- Mounting screws x 2
Hardware Specifications
Computer
CPU ARMv7 Cortex-A8 300/600/1000 MHz
USB USB 2.0 host x 1 (type A connector)
DRAM 256 MB DDR3 SDRAM
OS (pre-installed) Debian ARM 7 (Kernel 3.2)
Storage
Storage Expansion • SDHC/SDXC socket for storing OS and storage expansion
• 1 GB SD card with OS pre-installed
• MicroSD socket for storage expansion (UC-8112-LX only)
• 2 GB MicroSD cards with OS pre-installed (UC-8112-LX only)
Ethernet Interface
LAN 2 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection 1.5 kV built-in
Serial Interface
Serial Standards 1 or 2 RS-232/422/485 ports, software-selectable (5-pin terminal block connector)
Console Port RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1)
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control XON/XOFF, ADDC® (automatic data direction control) for RS-485
Baudrate Max. 921600 bps
Serial Signals
RS-232 TxD, RxD, RTS, CTS, GND
RS-422 TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Data+, Data-, GND
LEDs
System Power x 1, USB x 1, SD x 1, signal strength x 3 (UC-8112/8162/8132 with cellular module)
LAN 10M/100M on connector
Programmable Diagnosis x 3
Switches and Buttons
Push Button Initially configured to return a diagnostic report, and to reset the device to factory defaults
Physical Characteristics
Housing Polycarbonate plastic
Weight 224 g
Dimensions 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
Mounting DIN rail, wall (with optional kit)
Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models*: -40 to 75°C (-40 to 167°F)
Note Available by request.
Storage Temperature -40 to 80°C (-40 to 176°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Anti-Vibration 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
Anti-Shock 20 g @ IEC 60068-2-27, half sine wave, 30 ms
Power Requirements
Input Voltage 12 to 24 VDC (3-pin terminal block, V+, V-, SG)
Power Consumption 5.4 W (without cellular module and external USB device attached)• 450 mA @ 12 VDC
• 225 mA @ 24 VDC
• Standards and Certifications
Safety UL 60950-1, EN 60950-1, CCC (GB9254, GB17625.1)
EMC EN55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A
Green Product RoHS, CRoHS, WEEE
Reliability
Alert Tools Built-in RTC (real-time clock)
Automatic Reboot Trigger Built-in WDT (watchdog timer)
Warranty
Warranty Period 5 years
Software Specifications
Linux
OS Debian ARM 7
Web Server (Apache) Allows you to create and manage web sites; supports PHP and XML
Terminal Server (SSH) Provides secure encrypted communications between two un-trusted hosts over an insecure network
Kernel GNU/Linux 3.2
System Shell DASH (default), BASH
Text Editor vim, nano
Internet Protoctol Suite TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP,PAP,DHCP, NTP,NFS, SSH, PPP, SFTP, RSYNC, SSL
Programming Language Support PHP, Perl, Python
Internet Security Suite OpenVPN, iptables
Cryptographic hardware accelerators AES, SHA, OpenSSL
Self Diagnosis Check status of system and hardware component via software method
Linux Board Support Packages (BSP) • GCC C/C++ cross development tool chain
• Bootloader/ Kernel/ filesystem
Cellular Networking (UC-8132-LX, UC-8162-LX, UC-8112-LX only)• WVDIAL: Point-to-Point Protocol dialer that dials a modem and starts pppd to connect to the Internet.
• QMI (Qualcomm MSM Interface): Glib-based library for talking to WWAN modems and devices
Cybersecurity • Secure Boot: A novel authentication algorithm proposed to secure platform integration. Only trusted Linux kernel and bootloader should be executed (Patent Pending).
• SUDO Mechanism: Sudo (sometimes considered short for Super-user Do) is a
