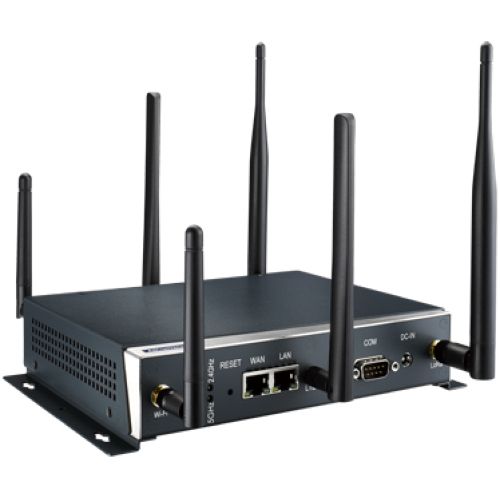

WISE-3610ZOS-41B1E
WISE-3610Z for EPD Network IoT Gateway for EU
Features
- Qualcomm Atheros Quard-Core ARM Cortex-A7 SoC
- Built-in Dual Band Concurrent Wi-Fi MU-MIMO (2x2)
- LPWAN LoRa Private (WISE-Link) Connectivity
- WAN x1 / LAN x1 Gigabit Ethernet
- Integration of Modbus TCP Networks
- IPSec / L2TP VPN Traffic Encryption
- Rich Network Scanrio by Easy S/W Configuration
- Modularization Hardware Design with 2 miniPCIe Slots
- OpenWRT BSP Embedded
- Web UI User Interface
Introduction
WISE-3610 is a Qualcomm ARM Cortex A based hardware platform, which operates at OpenWRT, described as a Linux distribution for embedded devices. Leveraging wireless sensor
technology, the Advantech WISE-3610 Industrial Router is as Advantech IoT gateway designed for smart cities and Industry 4.0 applications, even those in harsh environments. This
IoT gateway can aggregate both wireless sensor networks (WSN), including Low Power WAN (LPWAN) technology by Advantech private LoRa technology, wired sensors and ties
them into an IP network. With a modular slot design, it can agilely adapt to a variety of wireless technologies at regional RF bands with wireless communication protocols by various
uplink requirements and quickly go to market.
Specifications
Processor System
CPU QCA Quad-core ARM Cortex A7 CPU 716 MHz
RAM DDR3L 256MB
Flash 128MB
Ethernet
WAN 1 10/100/1000 Mbps
LAN 1 10/100/1000 Mbps
Security
VPN Engine IPsec, L2TP
Connectivity
Wi-Fi 2x2 IEEE802.11ac MU-MIMO 2.4GHz / 5GHz Qualcomm® VIVE™ technology
LoRa LoRa Private Network - WISE-Link up-to 500 sensor nodes support
4G/LTE (Option) 4G miniPCIe card
Expansion
SD socket 1 x Micro SD socket
mini PCIe
1 x Full size mini PCIe slot
1 x Full size mini PCIe Module For LoRa Host
SIM 2 x Micro SIM slot
I/O (Edge)
USB: 1 x USB 3.0 type A
Serial Port: 1 x RS-232/422/485 (DB9 Male) Configure by hardware switch on board
Antenna:
6 x SMA Connector
Wi-Fi: 2 x RP-SMA
LoRa: 2 x SMA
Optional for 4G: 2 x SMA (1 x Rx Diversity)
LED: 6 x PWR/LoRa/Wi-Fi 2G/Wi-Fi 5G/USB/WWAN
Button: 1 x Reset button
Power
Power Supply Voltage: 9 - 24V
Power Type: DC-in
Power Consumption: 18 Watt
Environment
Operational Temperature: -20 ~ 70 °C
Operating Humidity: 5 ~ 95% Relative Humidity, non-condensing
