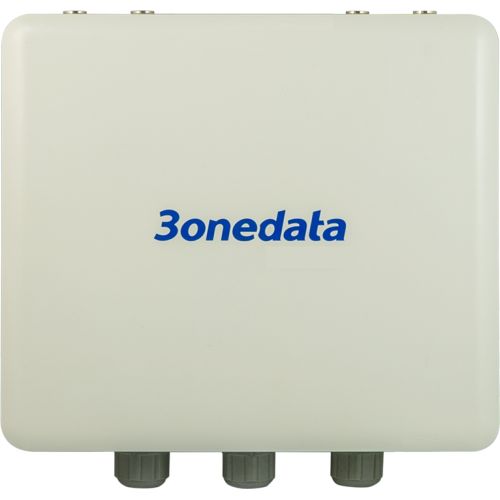

IAP2600S-4A25-1GC3GT 3onedata Access Point

IAP2600S series are Gigabit industrial outdoor dual-band wireless AP. This series provides two products, which support 1 Gigabit PoE copper WAN port or 1 Gigabit PoE Combo WAN port, 3/4 Gigabit copper LAN ports, 2 2.4G antenna interfaces and 2 5.8G antenna interfaces, and adopt wall-mounted or pole-holding installation mode, which can meet the needs of different application sites.

The network management system supports five operating modes including Route, AP, Bridge, Client and Dual-link, and IEEE802.11b/g/n/a/ac wireless technology. The highest rate of complete machine could reach 1167Mbps and meet the needs of quick data transmission. The device supports wireless encryption methods like WPA, WPA2, WPA3, etc. It also possesses SSID concealing, wireless user isolation, MAC address filtering, ARP binding, DMZ setting and other security strategies. Support virtual AP, that is, an AP device supports multiple SSID; supports single-link fast roaming and dual-link seamless roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve fast roaming without conducting the switching operation.

RESET button can realize device reboot and one-key factory default restoration. All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.





IEEE 802.3 for 10Base-T

IEEE802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE802.11b/g/n/a/ac for WLAN

IEEE802.11i for wireless security

IEEE802.11r for fast roaming

IEEE802.3af/at for PoE

Route, AP, bridge, client, dual-link

Intranet Settings, wireless Settings, Wireless Probe, AC Management, SNMP Management, QoS Management

IP filtering, MAC filtering, URL filtering, port forwarding, ARP binding, DMZ setting

802.11b/g/n: 2.412GHz~2.4835GHz

802.11ac/n/a: 5.18GHz~5.825GHz

RF power output: 20dBm

Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7

802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7

802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps

802.11b: -93dBm@1Mbps, -87dBm@11Mbps

802.11ac: -84dBm@MCS0, -59dBm@MCS9

802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7

802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7

802.11g/a: 20dBm@6Mbps, 20dBm@54Mbps

802.11b: 20dBm@1Mbps, 20dBm@11Mbps

802.11ac: 20dBm@MCS0, 20dBm@MCS9

WAN port:

1 10/100/1000Base-T(X) RJ45port, support POE 48VDC input power supply;

1 Gigabit Combo port, supports dual-fiber LC flange interface or 10/100/1000 Base-T(X) RJ45 port, and copper port supports POE 48VDC power supply input;

LAN port: 3/4 10/100/1000Base-T(X) RJ45 port

Console port: CLI command management port (RS-232), RJ45

Antenna: 2 2.4G N-K type (Female) ports; 2 5.8G N-K type (Female) interface
