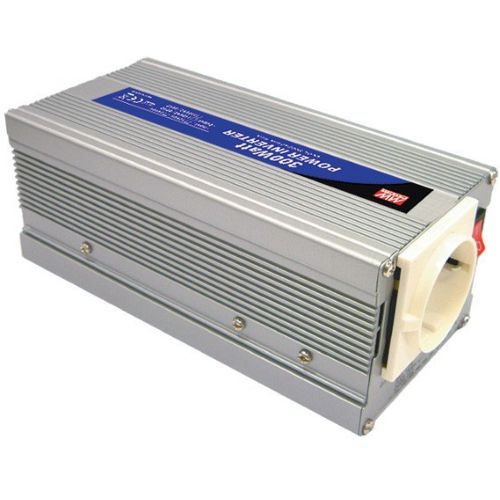

A302-300-B2 Mean Well Onda Modificata

Features

• 12V or 24V DC input
• Power ON-OFF switch
• Input voltage range: -15% ~ +25%
• Output voltage regulation: ±10%
• Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
• Output waveform: Modified sine wave
• Cooling fan ON-OFF control
• Topology: Microprocessor
• Approvals: e13/ CE
• 1 year warranty

SPECIFICATIONS

OUTPUT

SAFETY MODEL NO.: A-300-300W
AC VOLTAGE: 110v
RATED POWER: 300W
SURGE POWER: 600W
WAVEFORM: Modified Sine Wave
FREQUENCY: 60Hz±1%
AC REGULATION: ±10%
STANDARD RECEPTACLES: TYPE-2* 2ea
LED INDICATOR: Green LED for power on; Red LED for power failure status

INPUT

DC CURRENT: 15A
NO LOAD CURRENT DRAW: 0.2A
DC VOLTAGE: 24V
VOLTAGE RANGE: 21~30VDC
EFFICIENCY (Typ.): 85%
DC CONNECTOR: Cigarette plug*1ea, Battery clip*1ea
FUSE: Battery cord 20 A*1, Cigarette plug 10 A*1
