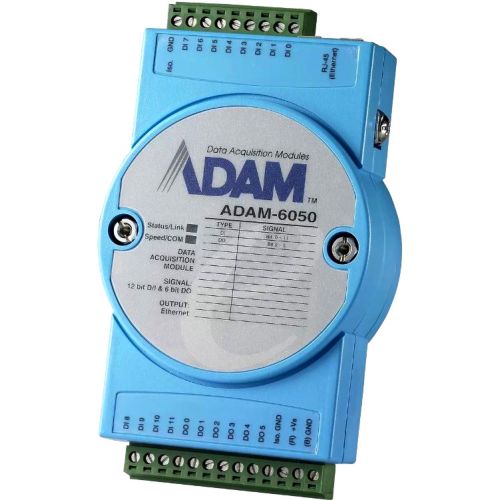

ADAM-6050-D
12ch digital input and 6ch digital output IoT Modbus/SNMP/MQTT Ethernet Remote I/O
Digital Input
Channels: 12
Dry Contact:
Logic level 0: close to GND
Logic level 1: open
Wet Contact:
Logic level 0: 0 ~ 3 VDC
Logic level 1: 10 ~ 30 VDC
Supports 3 kHz Counter Input (32-bit + 1-bit overflow)
Keep/Discard Counter Value when Power-off
Supports 3 kHz Frequency Input
Supports Inverted DI Status
Digital Output
Channels: 6 (sink type), open collector to 30 V, 100 mA maximum load
Supports 5 kHz Pulse Output
Supports High-to-Low and Low-to-High Delay Output
General
LAN: 10/100Base-T(X)
Power Consumption: 2 W @ 24 VDC
Connectors: 1 x RJ-45 (LAN), Plug-in screw terminal block (I/O and power)
Watchdog: System (1.6 second) and Communication (programmable)
Power Input: 10 ~ 30 VDC
Supports Peer-to-Peer, GCL
Supports User Defined Modbus Address
Supports Modbus/TCP, TCP/IP, UDP, DHCP, SNMP, HTTP and MQTT Protocol
Protection
Power Reversal Protection
Isolation Protection: 2,000 VDC
