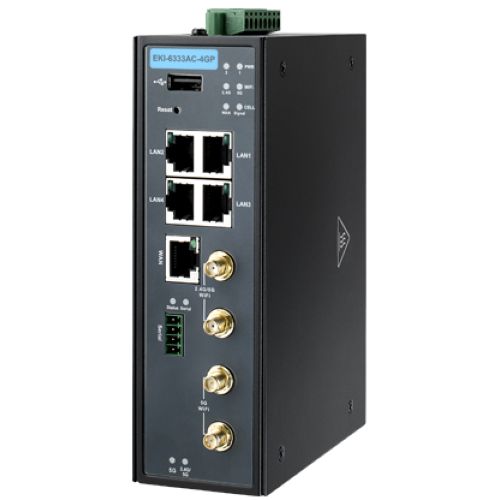

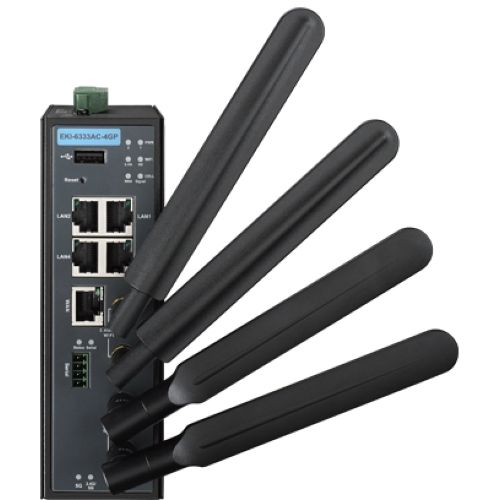

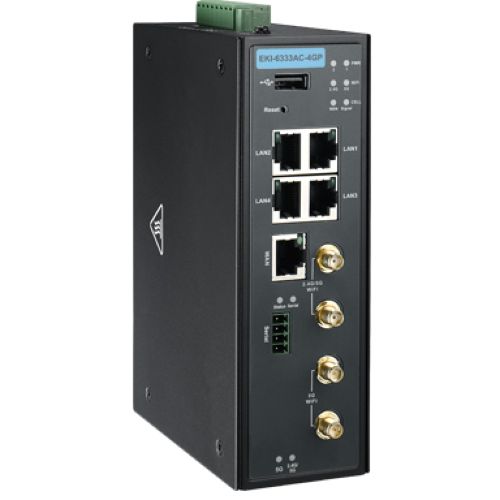

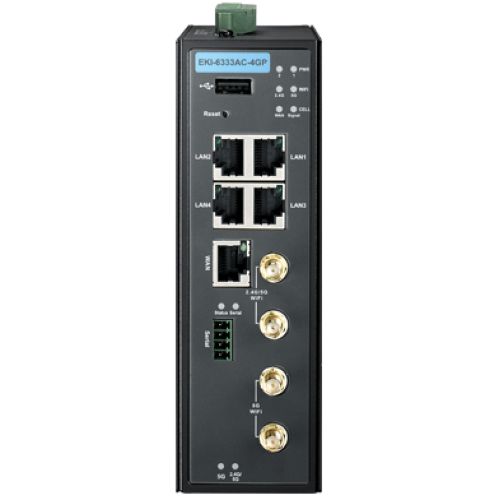

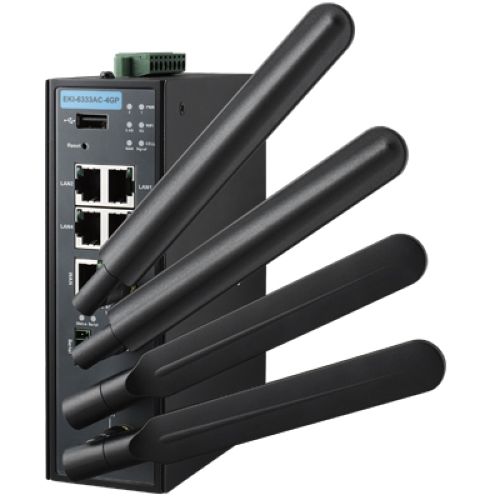

EKI-6333AC-4GP-A
Ind. 802.11 a/b/g/n/ac Wi-Fi AP with PoE PSE
Features
- Support 802.11n MIMO 2T2R
- WLAN transmision rate up to 867 Mbps
- Supports secure access with WEP, 802.1x, WPA/WPA2-Personal,
- WPA/WPA2-Enterprise
- Provides Web-based configuration
- Support Dual band 2.4G/5GHz concurrently
- 4 Gigabit Ethernet Port with PoE 802.3at PSE support
Introduction
The EKI-6333AC-4GP is a feature rich wireless AP with din-rail type design which provides a reliable wireless connectivity for industrial environments. As an 802.11n compliant
device, EKI-6333AC-4GP provides 6 times higher data rates than legacy 802.11g devices.
With the support of WMM, EKI-6333AC-4GP effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and high throughput data
transmission. To secure wireless connections, EKI-6333AC-4GP implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.
Specifications
Ethernet Communications
Port Type: RJ45
No. of Ports: 4 with 802.3at PSE
Speed: 10/100/1000 Mbps
Wireless LAN Communications
No. of Radio: 2 (Dual Radio)
Compatibility: IEEE 802.11a/b/g/n/ac
Speed: Up to 867Mbps for 11ac
Network Mode: AP/Router/Bridge/Station
Antenna Connector: Reverse SMA
No. of Antenna: 4 (Support 2T2R for each Radio)
Free Space Range: Open space 100 m
Wireless Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Software
Management: Web, Telnet CLI, command script, SNMPv3 Standard
Security:
VPN: IPSec, OpenVPN, PPTP, L2TP, GRE
Firewall: SPI firewall with stealth mode, IPS
Access Control: Packet filter, URL blocking, MAC filter
Event Handling: Management/Notifying Events, Syslog, Email Alart
Diagnostic: Packet Analyzer, Diagnostic Tools
Mechanics
Enclosure: Metal shell with solid mounting kits
Mounting: DIN-rail, Wall (optional)
Dimensions (W x H x D): 62 x 160 x 125 mm
Weight: 1.5 kg
General
LED Indicators:
System: Power, System Status
WLAN: Quality, Link/Active
LAN: Link/Active
Reboot Trigger: Built-in WDT (watchdog timer)
Power Requirements
Power Input: 24 ~ 56 VDC, Redundant dual inputs
Power Connector: Terminal block
Power Consumption: 20W (120W for 4xPDs)
Environment
Operating Temperature: -30 ~ 70°C
Storage Temperature: -40 ~ 80°C (-40 ~ 176°F)
Operating Humidity: 10 ~ 95% RH
