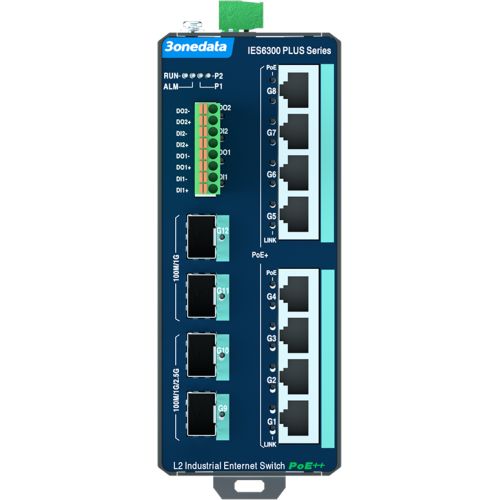

IES6300-8GHP2GS2HS-2P48-360W, Layer 2 Managed Industrial PoE++ Switch, Support 2 100M/1G/2.5G SFP slots, 2 100M/1G SFP slots, 8 Gigabit PoE port, 2 DI and 2 DO
IES6300-8GHP2GS2HS-2P48-360W
Layer 2 Managed Industrial PoE++ Switch, Support 2 100M/1G/2.5G SFP slots, 2 100M/1G SFP slots, 8 Gigabit PoE port, 2 DI and 2 DO
SPEDIZIONE GRATUITA
Overview
IES6300-8GHP2GS2HS-2P48-360W is 12-port Gigabit layer 2 managed industrial PoE Ethernet switch. PoE power supply conforms to IEEE802.3af/at/bt protocol standard. This product provides multiple interfaces including Gigabit PoE copper ports, 100M/1G SFP slots, 100M/1G/2.5G SFP slots and I/O ports. It adopts DIN-Rail mounting to meet the requirements of different application scenes.
The network management system supports a variety of network protocols and industry standards, such as Ring, STP/RSTP/MSTP, ERPS, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, MEP, LACP and Port Mirroring. It possesses complete management functions and supports Port Configuration, NAS, ACL, Network Diagnosis, Online Upgrade, etc. CLI, WEB, TELNET, SSH, SNMP and other access methods can be supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Features
- SNMPv1/v2c/v3 is used for network management of various levels
- RMON can be used for efficient and flexible network monitoring
- QoS supports real-time traffic classification and priority setting
- LLDP can achieve automatic topology discovery, which is convenient for visual management
- DHCP server and DHCP client could be used for allocating IP address of different strategies
- DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
- DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
- File management is convenient for the device rapid configuration and online upgrading
- Alarm log and log server can record user operation, system failure, system security and other information locally and remotely
- User privilege classification configuration can set user privilege level
- SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
- Support NAS network access service and provide security assurance for multiple services
- MEP function can determine the scope and boundary of maintenance domain
- EVC configuration function can realize the connection between the two points of Ethernet service
- Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
- EPRS function can realize link backup and improve the reliability of network
- Relay alarm is convenient for troubleshooting of construction site
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
IEEE 802.3bt for PoE++
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MAC Address, LLDP, Storm Suppression, User Password, Login Method, File Management, Log Management, Port Statistics, MEP
Security
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast
IGMP Snooping, Unicast MAC
Redundancy Technology
Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Cable Detection, Port Mirroring
Time Management
NTP, Time Zone Configuration
