WISE-2410-MTB01
Metal Base for WISE-2410
Features
- LoRaWAN wireless connectivity
- Built-in 3-axis accelerometer and temperature sensor
- On-board computing. Directly sends VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values to applications
- Support battery power supply, no wiring installation needed
- Easy settings with user friendly interfaces on WISE Studio utility
- ISO 10816-3 compliant
- Support wide temperature -20 ~ 85 °C
- IP66 enclosure design
Introduction

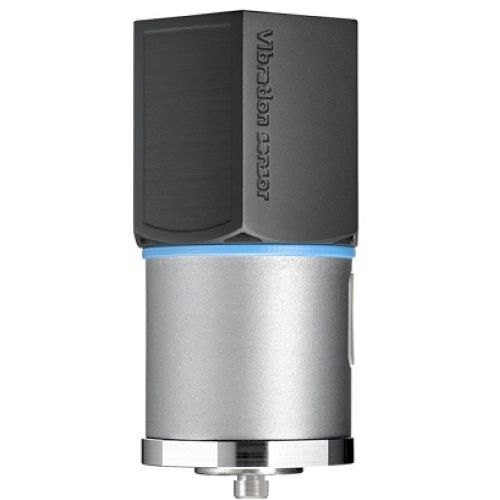

WISE-2410 is a LoRaWAN wireless condition monitoring sensor integrated with an ARM Cortex-M4 processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. It
balances the wireless bandwidth between WISE-2410 and the gateway, so it also mitigates the data transmission fail rates between edge-devices and gateways.
Star Topology
WISE-2410 is a LoRaWAN uses a star network topology and features a gateway data relay function between sensors and the application server. The communication between the
sensors and gateway goes over the wireless channel, utilizing the LoRa physical layer, whilst the connection between the gateways and the central server are handled over a backbone
IP-based network or over Modbus protocol to the application server.
Computing on Board
With an ARM Cortex-M4 Processor, WISE-2410 enables users to implement more features inside. WISE-2410 is able to calculate more complex eigenvalues itself, such as VRMS,
ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values. With its edge computing capability, WISE-2410 can balance the loading between WISE2410, gateway, and cloud service.
Plug & Play with 2-year Battery life cyle
WISE-2410 includes two 3.6V AA battery holders. Along with LPWAN technology verified by Advantech, the battery life on WISE-2410 can be up to 2 years with once per hour data
update interval time. With IP66 protection design, WISE-2410 is ideal for Low-Power Wide-Area Network (LPWAN) applications, such as pumps, HAVC system, motors, facility
monitoring and more. WISE-2410 connects to Advantech’s WISE Studio Utility for more user friendly and efficient installation.
Specifications
Wireless Communication
Frequency Band:
US 902-928 (MHz)
EU 863-870 (MHz)
AU 915-928 (MHz)
AS 919-924 (MHz)
RU 864-870 (MHz)
JP 920-928 (MHz)
Spreading Factor: 7~12
Transmit Power: Up to 20dBm
Topology: Star (LoRa/LoRaWAN)
Sensitivity: -148dB
Data Rate:
50 kbps at FSK mode EU
21.9 kbps at SF7 mode US/TW
5.47 kbps at SF7 mode for JP
General
Power Input: 3.6V AA Battery *2pcs (Not included)
Battery Life: 2 years (once per hour data update interval time)
LED Indicator: Power, Tx
Configuration Interface: Micro-B USB
IP Class: IP66
Mounting: Stud mount, Mounting pad and Adhesives
Dimension (H x D): 84.7 x 48.3 mm
Certification: CE (RED), FCC, NCC, TELEC, VCCI, BSMI, RCM, ANATEL
Environment
Operating Temperature:
-20°C ~ 85°C (USB powered)
-20°C ~ 70°C (Battery powered)
Operating Humidity: 10% ~ 95% RH
Storage Temperature: -25°C ~ 90°C
Storage Humidity: 5% ~ 95% RH
