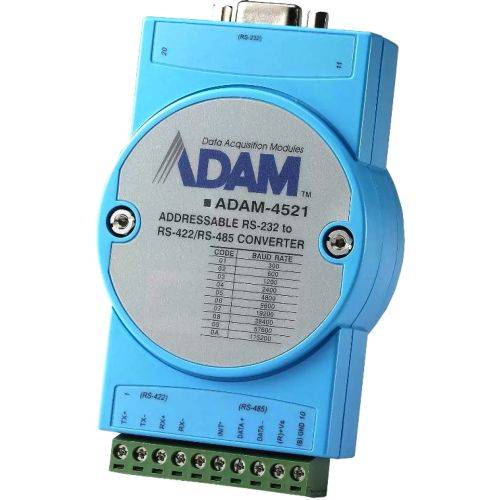

ADAM-4521-AE, Isolated Addressable rs422/485 to rs232 Converter
ADAM-4521-AE
Isolated Addressable rs422/485 to rs232 Converter
SPEDIZIONE GRATUITA
General Specifications
Connectors:
1 x plug-in terminal block (#14 ~ 22 AWG) (RS-422/485)
1 x DB9-F (RS-232)
Isolation Voltage: 1,000 VDC
Power Consumption: 1.0 W @ 24 VDC
Built-in microprocessor and watchdog timer
Serial Communications
Input: RS-485 (2-wire) or RS-422 (4-wire)
Output: RS-232 (DB9)
Speed Modes (bps): 300, 600, 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k (software configurable)
RS-232 and 485 can be set to different baudrates
RS-485 surge protection and automatic RS-485 data flow control
Software configurable to either addressable or non-addressable mode
