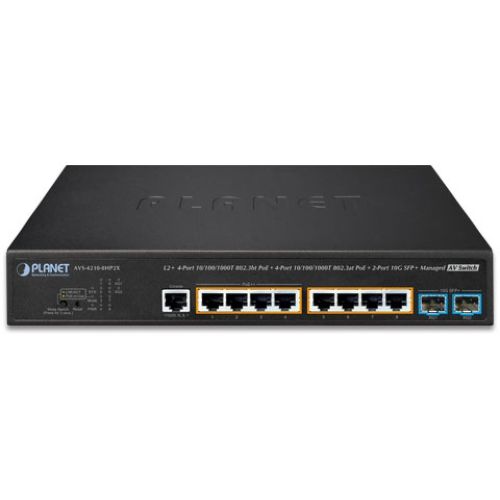

AVS-4210-8HP2X Planet Managed POE

Features

Physical Port

• 4 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 4)
• 4 10/100/1000BASE-T ports with 32W 802.3at PoE+ injector function (Ports 5 to 8)
• 2 10GBASE-SR/LR SFP+ slots, compatible with 100/1G/2.5G BASE-X SFP transceivers (Ports XG1 to XG2)
• RJ45 to DB9 console interface for switch basic management and setup

Pro AV Design

• Dual UI design features a streamlined Pro AV interface and a conventional Standard UI
• Pre-configured IGMP snooping enables instant multicasting functionality upon powering on
• Pre-configured Dante and NDI templates simplify the configuration process for immediate plug-and-play capability
• Fanless mode eliminates the fan noise, ensuring disturbance-free operation

Switching

• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 16K MAC address table size
• 12K jumbo frame
• Automatic address learning and address aging

Power over Ethernet

• Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
• 4 ports supporting IEEE 802.3bt PoE++ , with each offering up to 95 watts (ports 1-4)
• 4 ports supporting IEEE 802.3at PoE+, with each offering up to 32 watts (ports 5-8)
• Total PoE power budget of 240 watts
• Fanless mode
• Automatic detection of powered devices (PD)
• Built-in circuit protection to prevent power interference between ports
• Remote power feeding up to 100 meters
• Advanced PoE management capabilities:
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• Detection of PD classification
• Intelligent PoE features
• PD alive check
• PoE schedule
• Scheduled power recycling

Layer 3 IP Routing Features

• Supports maximum 32 static routes and route summarization
• Routing interface provides per VLAN routing mode

Layer 2 Features

• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
• Protocol VLAN
• Private VLAN (Protected port)
• Management VLAN
• GVRP
• Supports Spanning Tree Protocol
• STP (Spanning Tree Protocol)
• RSTP (Rapid Spanning Tree Protocol)
• MSTP (Multiple Spanning Tree Protocol)
• STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 8 trunk groups, up to 8 ports per trunk group
• Supports port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)

Quality of Service

• Ingress and egress rate limit per port bandwidth control
• Storm control support
• Broadcast/Unknown unicast/Unknown multicast
• Traffic classification
• IEEE 802.1p CoS
• TOS/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering

Security

• Authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ login user access authentication
• DHCP Option 82
• Access control list
• IPv4/IPv6 IP-based ACL
• IPv4/IPv6 IP-based ACE
• MAC-based ACL
• MAC-based ACE
• MAC security
• Static MAC
• MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• DoS attack prevention

Management

Pro AV UI Specific Settings

• Intuitive Network Profile (VLAN) setup
• Color-coded groups for straightforward identification
• Pre-set profile templates
• Dante, NDI, Data
• IGMP querier designation

Standard UI

• IPv4 and IPv6 dual stack management
• Switch management interface
• Web switch management
• Console and telnet command line interface
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.2, TLSv1.3 and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface link up and link down notification
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System maintenance
• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through HTTP/TFTP
• Dual images
• Hardware-based reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic
• SFP-DDM (digital diagnostic monitor)
• Cable diagnostics
• ICMPv4/ICMPv6 remote ping
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS and CloudNMS for deployment management

Applications

Streamline Multimedia Experience with Planet's Tailored Pro AV Switching Solution

The AVS-4210-8HP2X Pro AV switch facilitates the convergence of diverse AV inputs from devices such as 4K cameras, microphones, Blu-Ray players, media server, and laptops. These inputs are then encoded, transmitted over Ethernet, and decoded to various output devices, including HDTV touchscreens, digital signage, projectors, video walls, and smart TVs.

Seamless Audiovisual Integration with Dante-enabled AVS-4210-8HP2X

The AVS-4210-8HP2X, a central hub expertly crafted for Dante-compliant devices, enables a unified and sophisticated audiovisual setup. Laptops, amplifiers, and microphones are connected to your network with ease. This Ethernet switch not only simplifies the connections but also ensures top-tier, studio-quality sound across the entire system.
