AWA20-8-24SS, AWA HEAT-SINK ALUMINIUM ENCLOSURE 202,4 X 77,4 X 243,8
AWA20-8-24SS
AWA HEAT-SINK ALUMINIUM ENCLOSURE 202,4 X 77,4 X 243,8
SPEDIZIONE GRATUITA
Technical Specifications
| Series | AWA |
|---|---|
| Color | Silver / Silver |
| External Dimensions (W × H × D) | 202 × 77 × 244 mm |
| Internal Dimensions (w × h × d) | 187 × 62 × 238 mm |
| Weight | 1238 g |

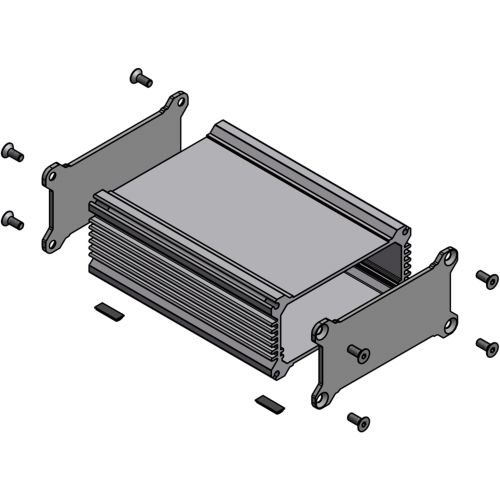

Materials and Construction
| Part name | Pcs | Material | Color / Finish |
|---|---|---|---|
| Body frame | 1 | Extruded aluminium A6063S-T5 | Silver / Anodized with clear coating |
| End panel | 2 | Aluminium A1050P | Silver / Anodized (Unfinished inside) |
| Hex socket screw | 8 | Stainless steel | Unfinished |
| Rubber feet | 4 | Polyurethane | Black |
Technical Features
- Extruded aluminium frame manufactured with heat-sink sides.
- Silver anodized end panels make for a luxurious finish.
- Conductivity is achieved by utilizing the contact between the unfinished end panel sides and the unfinished ends of the frame.
- PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.

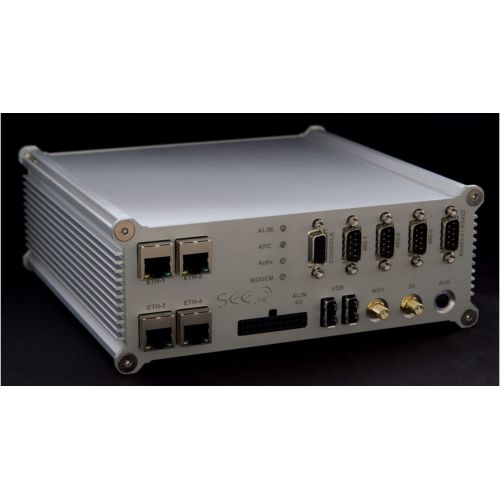

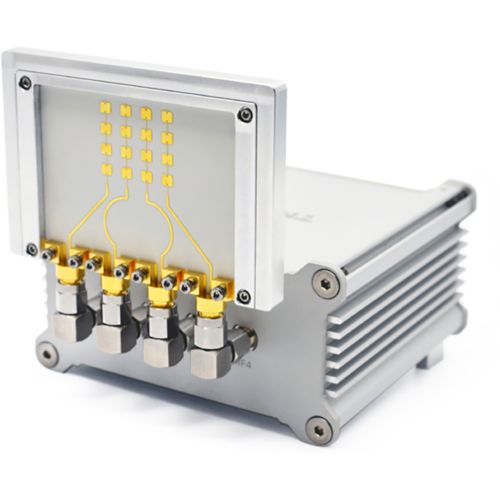

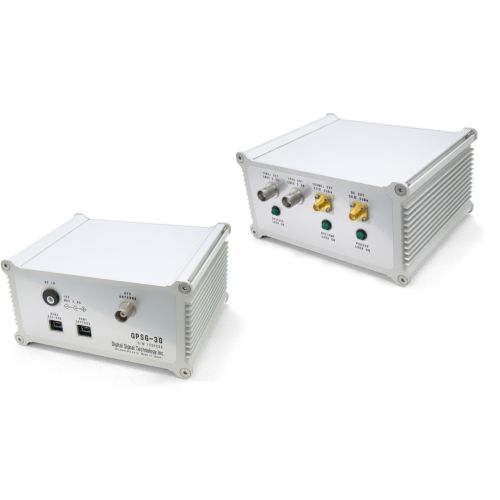

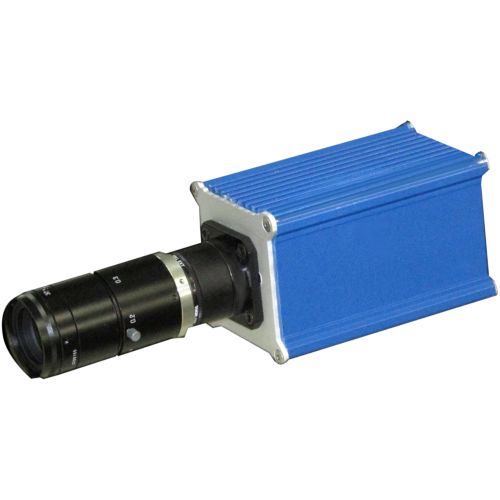

- Suitable for industrial fanless PC, measuring instrument, digital audio amplifier and more.
- Custom length is available.
