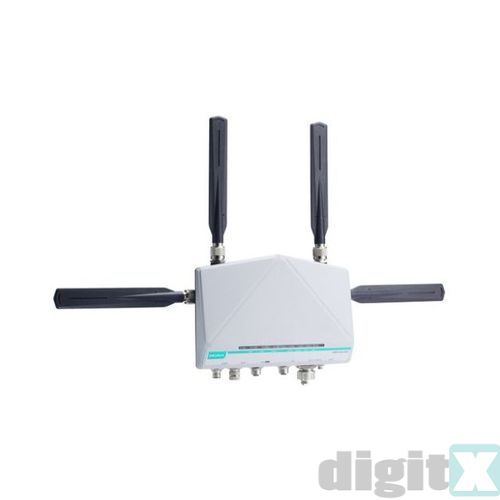

AWK-6232-M12-EU-T MOXA Access Point

Features and Benefits

• IEEE 802.11a/b/g/n compliant
• Dual-radio design for 2.4 GHz and/or 5 GHz bands
• M12 anti-vibration connectors
• Industrial grade QoS (WMM) and VLAN supported
• Supports client-based Turbo Roaming
• Rugged IP68-rated housing and -40 to 75°C operating temperature

Introduction

Moxa’s AWK-6232 3-in-1 outdoor wireless AP/bridge/client meets the growing need for faster data transmission speeds and wider coverage by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps per each radio module. The AWK-6232 provides a flexible and efficient way to deploy your wireless network with its dual 2.4/5 GHz RF modules, which allow two independent wireless connections over different frequencies. The AWK-6232 is compliant with the industrial standards and approvals, covering operating temperature, power input voltage, surge, ESD and vibration. In addition, the AWK-6232 is housed in an IP68 metal casing with M12 connectors for total protection against dust, water, vibration, and other environmental effects.

Improved Higher Data Rate and Bandwidth

• High-speed wireless connectivity with up to 300 Mbps data rate per each radio module
• MIMO technology to improve the capacity of multiple data stream transmits and receives
• Increased channel width with channel bonding technology

Features for Critical Environments

• IP68-rated metal housing and -40 to 75°C wide operating temperature
• Anti-vibration M12 design and waterproof/dust-tight RJ45 connectors
• Wall, DIN rail, and pole mounting options for versatile outdoor installation

WLAN Interface

Standards:
     IEEE 802.11a/b/g/n for Wireless LAN
     IEEE 802.11i for Wireless Security
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseTX
     IEEE 802.3ab for 1000BaseT
     IEEE 802.3at for Power-over-Ethernet Plus
     IEEE 802.1D for Spanning Tree Protocol
     IEEE 802.1w for Rapid STP
     IEEE 802.1Q VLAN
Spread Spectrum and Modulation (typical):
     DSSS with DBPSK, DQPSK, CCK
     OFDM with BPSK, QPSK, 16QAM, 64QAM
     802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps
     802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps
     802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps (multiple rates supported)
Operating Channels (central frequency):
     US:
          2.412 to 2.462 GHz (11 channels)
          5.18 to 5.24 GHz (4 channels)

     EU:
          2.412 to 2.472 GHz (13 channels)
          5.18 to 5.24 GHz (4 channels)

     JP:
          2.412 to 2.472 GHz (13 channels, OFDM)
          2.412 to 2.484 GHz (14 channels, DSSS)
          5.18 to 5.24 GHz (4 channels for W52)
Security:
     SSID broadcast enable/disable
     Firewall for MAC/IP/Protocol/Port-based filtering
     64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Transmission Rates:
     802.11b: 1, 2, 5.5, 11 Mbps
     802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
     802.11n: 6.5 to 300 Mbps (multiple rates supported)
TX Transmit Power:
     802.11b: 1 to 11 Mbps: Typ. 18 dBm (± 1.5 dBm)
     802.11g:
          6 to 24 Mbps: Typ. 18 dBm (± 1.5 dBm)
          36 to 48 Mbps: Typ. 17 dBm (± 1.5 dBm)
          54 Mbps: Typ. 15 dBm (± 1.5 dBm)
     802.11a:
          6 to 24 Mbps: Typ. 17 dBm (± 1.5 dBm)
          36 to 48 Mbps: Typ. 16 dBm (± 1.5 dBm)
          54 Mbps: Typ. 14 dBm (± 1.5 dBm)
TX Transmit Power MIMO (per connector):
     802.11a/n (20/40 MHz):
          MCS15 20 MHz: Typ. 13 dBm (± 1.5 dBm)
          MCS15 40 MHz: Typ. 12 dBm (± 1.5 dBm)
802.11g/n (20 MHz): MCS15 20 MHz: Typ. 14 dBm (± 1.5 dBm)
RX Sensitivity:
     802.11b: -92 dBm @ 1 Mbps, -90 dBm @ 2 Mbps, -88 dBm @ 5.5 Mbps, -84 dBm @ 11 Mbps
     802.11g: -87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82 dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72 dBm @ 48 Mbps, -70 dBm @ 54 Mbps
     802.11a: -87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82 dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72 dBm @ 48 Mbps, -70 dBm @ 54 Mbps
RX Sensitivity MIMO:
     802.11a/n: -68 dBm @ MCS15 40 MHz, -70 dBm @ MCS7 40 MHz, -69 dBm @ MCS15 20 MHz, -71 dBm @ MCS7 20 MHz
     802.11g/n: -69 dBm @ MCS15 20 MHz, -71 dBm @ MCS7 20 MHz

Protocol Support

General Protocols: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
AP-only Protocols: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)

Interface

Default Antennas: 4 dual-band omni-directional antennas, 5 dBi at 2.4 GHz, 2 dBi at 5 GHz, N-type (male)
Connector for External Antennas: N-type (female)
M12 Ports: 2, 10/100/1000BaseT(X), auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (female)
Console Port: RS-232 (waterproof RJ45-type)
Reset: Present
LED Indicators: PWR, FAULT, STATE, WLAN1, WLAN2, LAN1, LAN2
Alarm Contact (digital output, M12 connector): 1 relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs (M12 connector, male):
     2 electrically isolated inputs
     +13 to +30 V for state “1”
     +3 to -30 V for state “0”
     Max. input current: 8 mA

Physical Characteristics

Housing: Metal, IP68 protection
Weight: 1.8 kg
Dimensions: 224 x 148 x 67 mm (8.82 x 5.82 x 2.62 in)
Installation: Wall mounting (standard), DIN-Rail mounting (optional), pole mounting (optional)

Environmental Limits

Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5% to 100% (non-condensing)

Power Requirements

Input Voltage: 12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet plus (IEEE 802.3at compliant)
Connector: M12 male connector with A-coding
Power Consumption: 12 to 48 VDC, 1.5 A (max.)
Reverse Polarity Protection: Present

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMC: EN 301 489-1/17, FCC Part 15 Subpart B, EN 55022/55024
Radio: EN 300 328, EN 301 893, TELEC

Warranty

Warranty Period: 5 years
