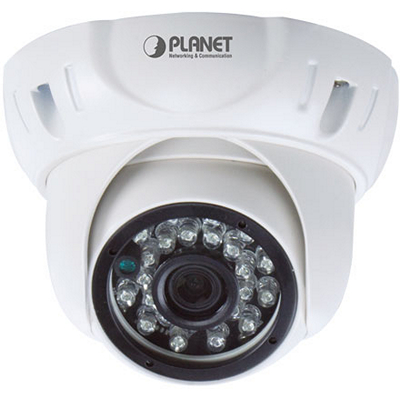

CAM-AHD425
1080p AHD IR Dome Camera
Bisogno di aiuto?
1080p HD Analog Camera
PLANET CAM-AHD425 camera is a high-resolution analog camera and able to work with AHD DVR for different applications. Users can easily upgrade their surveillance system in the existing coaxial infrastructure without having to overhaul it. Besides, the camera supports TVI/CVI/CVBS mode and the camera can comply with different DVRs like TVI or CVI DVR. Through the OSD control button, user is able to set up AHD/TVI/CVI/CVBS mode easily.
With Sony CMOS sensor and IR illuminators, the camera provides high-quality image under all lighting conditions. Besides, the CAM-AHD425 provides some significant features such as OSD control button, long-distance transmission and image quality enhancement. With these features, the camera brings us more efficiency and flexibility. The weatherproof housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for indoor or outdoor applications, e.g., chain stores, communities, campuses, parking areas, garages, roads and public transportations.
Easy Adjustment via OSD
The CAM-AHD425 is equipped with an OSD (on-screen display) control button. The OSD of the device is easily accessible via a simple control attached to the power and video cord. The benefits of an OSD are that it provides a simple, efficient, and easily understandable way to change the various settings of the camera.
Image Quality Enhancement
Together with powerful image processing attributes like Wide Dynamic Range and Digital Noise Reduction technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Day & Night Functionality
To adapt to constantly changing lighting conditions, the CAM-AHD425 comes with a Sony sensor and 24 built-in IR illuminators, which enable the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The camera is able to maintain clear images 24 hours a day.
IP65-rated Housing for Indoor and Outdoor Purposes
With the IP65-rated housing, the CAM-AHD425 is suitable for use in all weather conditions, be it rainy or dusty. No matter how extreme the weather is, it is able to operate as stably as possible. The CAM-AHD425 is indisputably the top choice for reliable and high-performance surveillance.
Long-distance Transmission
Based on AHD technology, the video data of the CAM-AHD425 can be transmitted via a coaxial cable at the distance of up to 500 meters without any latency and losses.
Applications
Taking advantage of the convenient TCP/IP network, the surveillance system administrators can integrate different kinds of cameras such as the CAM-AHD425 IR camera with PLANET HDVR system to establish 24/7 indoor and outdoor secure surveillance applications.
Features and Benefits
Camera
- 1/2.8" Sony 2MP CMOS sensor
- Fixed lens 3.6mm/F1.2
- 0 lux with built-in IR LED
- Maximum resolution up to 1920 x 1080
- 24 built-in IR LEDs for low light and long distance up to 25 meters
Video
- Supports AHD/TVI/CVI/CVBS mode
- Auto Gain Control and White Balance
- Auto Electronic Shutter Time: 1/25s~1/45,000s
- S/N ratio of more than 52dB
- Image enhancement with 2DNR
- Digital Wide Dynamic Range
- Transmission distance up to 500 meters
Hardware
- Video Output: 1 Vp-p composite video, 75 ohms
- IP65-certified protection
- Analog operation; easy to install; fast reaction
Specifications
Camera
Sensor: Sony 1/2.8" 2MP CMOS
Effective Picture Elements: 1920 (H) x 1080 (V) @ 30fps
System: PAL/NTSC
Lens Furnished: Fixed lens 3.6mm/F1.2
Minimum Illumination: 0.01 lux @ F1.2, 0 lux with built-in IR LED
Video Output: 1 Vp-p composite video, 75 ohms
Protection Class: IP65
Power Supply: 12V DC, 1A
Dimensions (W x D x H): 98 x 110 x 77 mm
LED
IR LED: 24 pcs Φ5 LED
IR Project Distance: up to 25 meters
Video & Audio
Hybrid Signal Ouput: AHD/TVI/CVI/CVBS mode
S/N Ratio: More than 52dB
White Balance: ATW/MWB
D-WDR: ON/OFF
Day and Night: Auto/Color/B/W/EXT
Gamma Characteristic: 00.45.00
Exposure Mode: Globe/Center/BLC/FLC
Auto Electronic Shutter: 1/25s~1/45,000s
Digital Noise Reduction: 2DNR
Defog: Auto/ON/OFF
AGC: Auto/Manual
Transmission Distance: Transmission over common coaxial 75-3 cable up to 300-500 meters
Environment
Operating Temperature: -30 to 50 degrees C
Humidity: ≤85%RH
