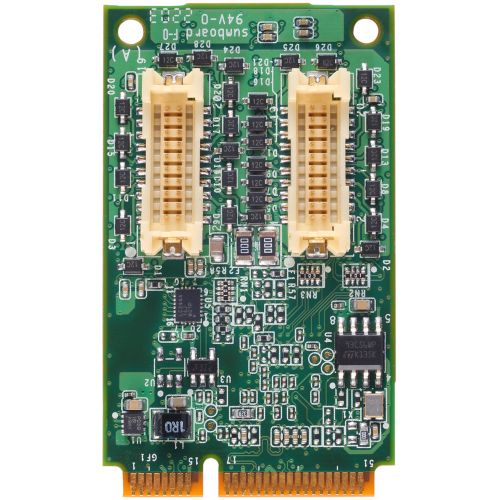

CP-104N-I-T, 4-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation,-40 to 85°C operating temperature
CP-104N-I-T
4-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation,-40 to 85°C operating temperature
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Certificati
Introduction
The CP-104N is a Mini PCI Express multiport serial board designed for varies applications such as industrial automation system and industrial PC manufacturers. The CP-104N is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.
The CP-104N is a top choice of industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the four RS-232 serial ports support a fast 921.6 kbps baudrate. The CP-104N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. It also provides 1 kV line-to-line surge protection and 2.5 kV isolation (for the I model), ensuring compatibility in a wide range of industrial environments.
Features and Benefits
- Mini PCIe interface support
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Drivers provided for a broad selection of operating systems, including Windows and Linux
Specifications
Serial Interface
Comm. Controller: 16C550C compatible
Bus: Mini PCI Express
Connector: DB9 male
FIFO: 128 bytes
No. of Ports: 4
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Isolation: 2.5 kV
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
Windows Drivers: Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022
Linux Drivers: Linux kernel 4.x, Linux kernel 5.x
Power Parameters
Input Current: 615 mA @ 3.3 VDC
Physical Characteristics
Dimensions: 30 x 50.95 mm (1.18 x 2 in)
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Time: 2,189,472 hrs
Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
Warranty Period: 5 years
