DN-19 WM-3H3V-SL DIGITUS Slim

DN-19 WM-3H3V-SL DIGITUS

DN-19 WM-3H3V-SL DIGITUS

DN-19 WM-3H3V-SL

ARMADIO SLIM A MURO 4 UNITA' 900X600 ALTEZZA 200MM GRIGIO CON APERTURA FRONTALE

Quantità':

Prezzo per pezzo

€ 403,73

(IVA esclusa)

€ 492,55 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 492,55

Disponibilità: limitata

Brand: DIGITUS

SKU: 114695

Model: DN-19 WM-3H3V-SL

Bisogno di aiuto?


Design elegante con aree di montaggio all'interno

  • Design elegante, ideale per le piccole applicazioni domestiche
  • 2 aree di assemblaggio utilizzabili 3U, che possono essere ruotate di 100°
  • Porta frontale bloccabile con fessure di ventilazione

L'alloggiamento a parete da 483 mm (19") della serie Slim consente l'installazione orizzontale o verticale di 3 unità con due aree indipendenti di installazione per pannelli patch, commutatori, router o un altro componente attivo da 483 mm (19").
Dettagli tecnici

  • Lamiera d'acciaio resistente 1,0 - 1,5 mm
  • 2x 3 unità di assemblaggio utilizzabili
  • Le parti di installazione possono essere ruotate di 100°
  • Ingressi per cavi fustellati con rivestimento in plastica su tutti i lati (145x70 mm)
  • Parte inferiore preparata per alloggiamento della ventola
  • Porta frontale bloccabile con fessure di ventilazione
  • Vari punti di connessione dei cavi per una gestione dei cavi più pulita
  • Maximum equipment mounting height inside (from top profile to base): 650 mm
  • Colore: grigio chiaro, RAL 7035
  • Profondità: 200 Mm
  • Porta anteriore: Porta in acciaio, chiusa
  • Capacità di carico: 100 kg
  • Tipo di armadio: Alloggiamento a parete, domotico
  • Larghezza: 600 mm

Description

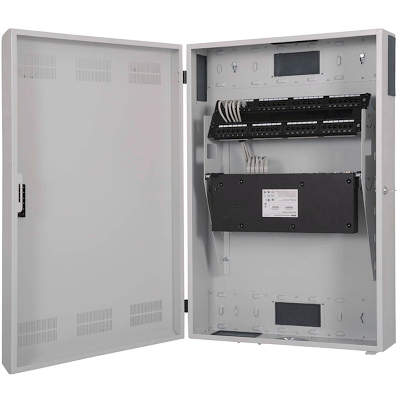

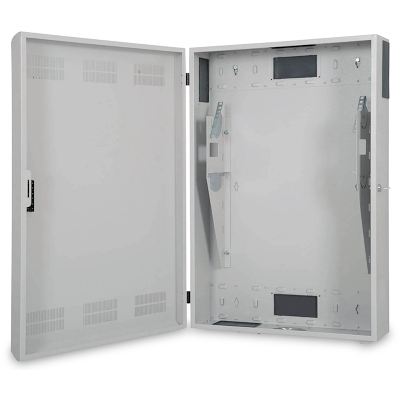

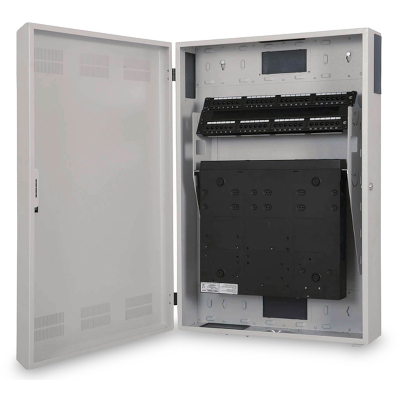

Wall mounting cabinet, slim, 900x600x200 mm 3U horizontal and 3U vertical, grey (RAL 7035)

Slim design with rotating mounting profiles inside

  • Slim design which is perfect for small home automations
  • 2x 3U usable mounting areas, which can be turned by 100°
  • Lockable front door with air ventilation slots

The 483 mm (19“) wall mounting cabinets of the slim series allow a horizontal or vertical mounting of 3U with two independent mounting areas for patch panels, switches, routers or other 483 mm (19”) active components.

Technical Details

  • 1.0 - 1.5 mm strong steel sheet
  • 2x 3U usable mounting areas
  • Mounting areas can be turned by 100°
  • Punched out cable entries with plastic cover on all sides (145x70 mm)
  • Bottom is prepared for fan units
  • Lockable front door with air ventilation slots
  • Several cable fixing points for a neat cable management
  • Maximum equipment mounting height inside (from top profile to base): 650 mm
  • Colour: Grey
  • Width: 600
  • Model: With permanent frame
  • Height: 900
  • Depth: 200
  • RAL-number: 7035
  • Number of doors: 1
  • Type of ventilation: Passive
  • Material: Steel
  • Number of height units: 3
  • With socket: no
  • Degree of protection (IP): IP20
  • Type of surface: With powder coating
  • Mounting level: Front side
  • Type of profile rail: L-shaped
  • With roof plate: yes
  • With earthing: no
  • With front door: yes
  • With backside door: no
  • With sidewall: yes
  • Demountable: no
  • Modular spacing: 482.6 mm (19 inch)
