DN-19 WM-V4U-SL DIGITUS Slim

DN-19 WM-V4U-SL DIGITUS

DN-19 WM-V4U-SL DIGITUS

DN-19 WM-V4U-SL

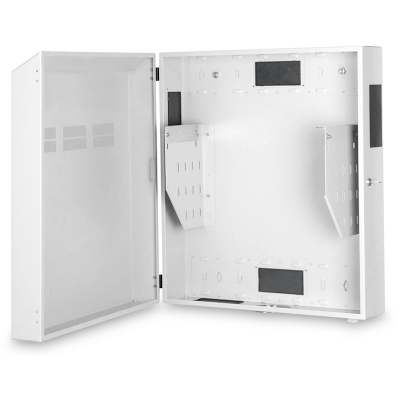

ARMADIO A MURO SLIM 4 UNITA' 800x640x220 mm

Quantità':

Prezzo per pezzo

€ 290,92

(IVA esclusa)

€ 354,92 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 354,92

Disponibilità: limitata

Brand: DIGITUS

SKU: 114701

Model: DN-19 WM-V4U-SL

Bisogno di aiuto?


 Design sottile con aree di montaggio per installazioni verticali interne

  • Design elegante, ideale per le piccole applicazioni domestiche
  • 483 mm (19")-parti per il montaggio all'interno: 4 unità in profondità
  • Porta frontale bloccabile con fessure di ventilazione

L'alloggiamento a parete da 483 mm (19") della serie Slim consente l'installazione a parete di 4 unità in altezza. Salvaspazio per reti, DVR, impianti audio, applicazioni patch e radioavviso o altri componenti attivi da 483 mm (19").

DETTAGLI TECNICI

  • Lamiera d'acciaio resistente 1,0 - 1,5 mm
  • 483 mm (19")-parti per il montaggio all'interno: 4 unità in profondità
  • Ingressi per cavi fustellati con rivestimento in plastica su tutti i lati (145x70 mm)
  • Parte inferiore preparata per alloggiamento della ventola
  • Porta frontale bloccabile con fessure di ventilazione
  • Il fermaporta è facile da sostituire
  • Dimensioni della confezione (A x L x P): 820x660x230 mm
  • Colore: grigio chiaro, RAL 7035
  • Profondità: 220 Mm
  • Porta anteriore: Porta in acciaio, chiusa
  • Capacità di carico: 100 kg
  • Tipo di armadio: Alloggiamento a parete, domotico
  • Larghezza: 640 mm

Description

Wall mounting cabinet, slim 800x640x220 mm, 4U vertical, color grey (RAL 7035)

Slim design with mounting profiles for vertical installations inside

  • Slim design which is perfect for small home automations
  • 483 mm (19“) mounting areas inside: 4U in depth
  • Lockable front door with air ventilation slots

The 483 mm (19“) Wall Mounting Cabinet of the Sim Series allows a vertical mounting of 4U in depth. Especially space saving for networks, DVR, sound equipment, paging- and patching applications or other 483 mm (19”) active components.

Technical Details

  • 1.0 - 1.5 mm strong steel sheet
  • 483 mm (19“) mounting areas inside: 4U in depth
  • Punched out cable entries with plastic cover on all sides (145x70 mm)
  • Bottom is prepared for fan units
  • Lockable front door with air ventilation slots
  • Door stop is easy to change
  • Packaging dimensions (HxWxD): 820x660x230 mm
  • Max. equipment mounting height inside: 610 mm
  • Colour: Grey
  • Width: 640
  • Model: With permanent frame
  • Height: 800
  • Depth: 220
  • RAL-number: 7035
  • Number of doors: 1
  • Type of ventilation: Passive
  • Material: Steel
  • Number of height units: 4
  • With socket: no
  • Degree of protection (IP): IP20
  • Type of surface: With powder coating
  • Mounting level: Front side
  • Type of profile rail: L-shaped
  • With roof plate: yes
  • With earthing: no
  • With front door: yes
  • With backside door: no
  • With sidewall: yes
  • Demountable: no
  • Modular spacing: 482.6 mm (19 inch)
