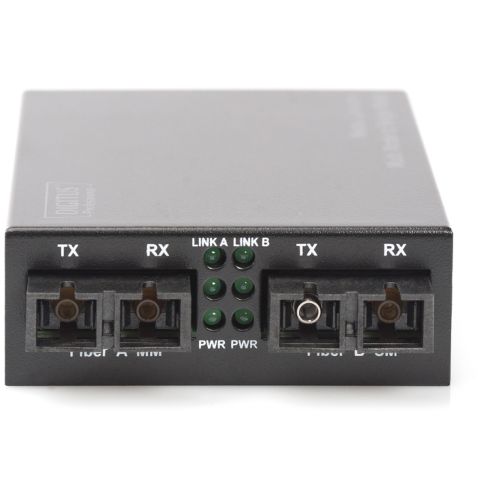

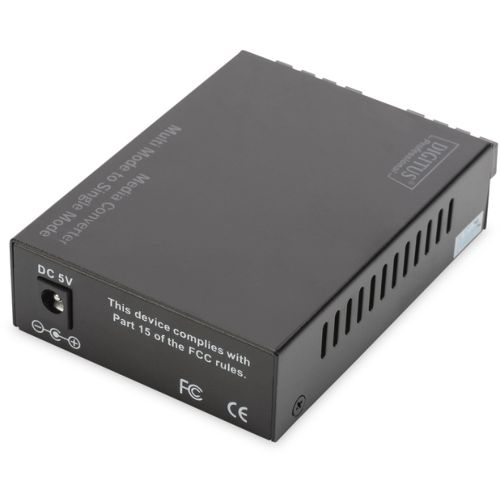

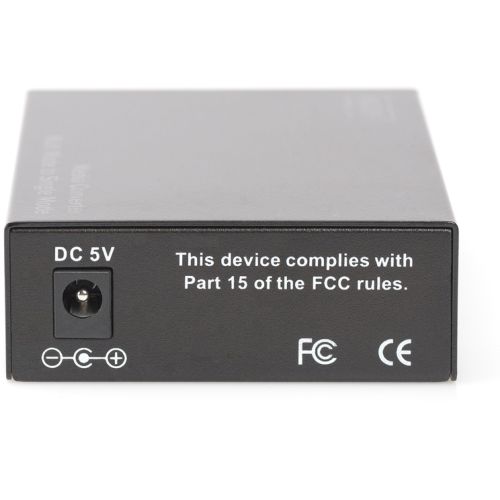

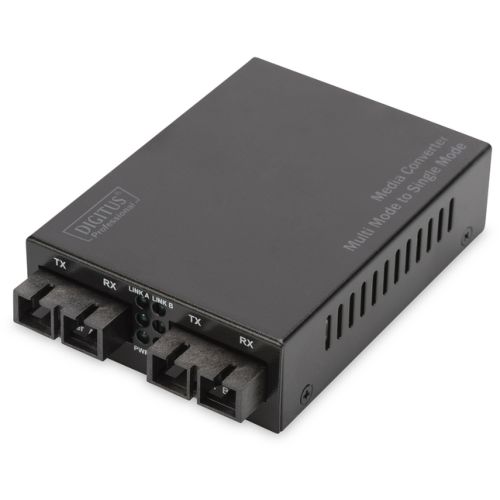

DN-82024 DIGITUS Fiber Converters

Fast Ethernet Media Converter Multi- to Singlemode SC to SC, Wavelenth 1310nm

The perfect converter solution for optical data transmission

• Easy conversion between multimode and singlemode fiber optic

• Fast migration for long distances

• Range of up to 20km

The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Technical Details

• Converts between single & multimode fiber optic

• 100Base-FX SC connector, multimode dual fiber

• 100Base-FX SC connector, singlemode dual fiber

• Wavelength: 1310nm

• Multimode range of up to 2km

• Singlemode range of up to 20km

• Diagnostic LEDs for status and activity monitoring

• Suitable for 50/125μm, 62.5/125μm, and 100/140μm fiber optic cables (multimode)

• Suitable for 8.3/125µm, 8.7/125µm, 9/125µm, and 10/125µm fiber optic cables (singlemode)

• Operating temperature: -10 ~ 55 °C

• Standalone converter with external power supply unit

• Input voltage: 5V DC

• Max. current consumption: 1 A

• Power consumption: 3.5W

• Dimensions (L x W x H): 95mm x 70mm x 26mm

Package content

• Fast Ethernet Multimode/Singlemode Media Converter SC/SC

• Quick start guide

• Power adapter
