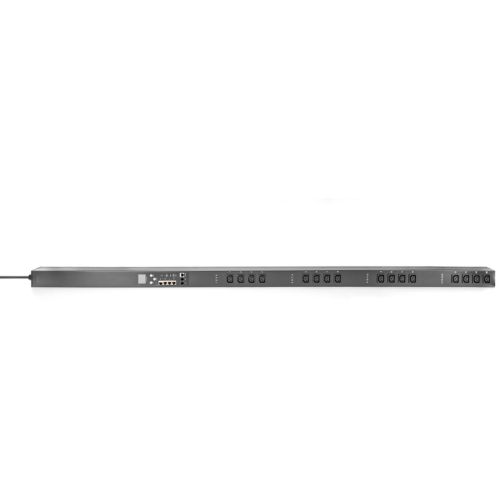

DN-95628 DIGITUS Prese Universali

Optimal PDU solution with remote monitoring options for demanding IT requirements



Supports remote access via web, SNMP or Telnet

Monitoring of input and output values

Configurable system with user-defined threshold value setting

Daisy chaining possible for up to 5 PDUs

180 degree rotating local HD display

Supports alarm functions

Monitoring of the rack environment with optional external sensors

Intelligent integration into the central system

Supports tool-free installation

The DIGITUS® Smart PDU offers you the option to remotely monitor the current, voltage, total energy consumption, total power and power factor at the input level, as well as the current, power and energy consumption at the output level. The limit value can be set for the total current and the alarm warns you about potential system overloads. Monitoring of the operating status is also enabled as well as for the current, energy and power at the circuit breaker level. This makes it possible to efficiently manage and distribute power. The device can be accessed and configured via web, SNMP and Telnet interfaces. With the option of connecting sensors, the unit can comprise a complete environment monitoring system to control the temperature, smoke, humidity and leaks in the racks. Up to five power strips which share the same network connection and IP address can be connected in series. Furthermore, the PDU can easily be integrated into the racks with tool-free installation options.



Monitoring of input current / voltage / total energy consumption / total power / power factor

Monitoring of output current / total energy consumption / total power

Remote access method: Web interface, HTTP, HTTPS, SNMP (v1 / v2c / v3), Telnet and serial console

Daisy-chaining of up to five PDUs (including master device)

Multi-stage user access

Compatible with temperature/humidity/smoke/leak sensors

User-defined alarm: E-mail notification & alarm signal if threshold values are exceeded for total current, temperature / humidity

Standard system alarm: If the total nominal power is exceeded; if smoke, water or an open door is detected

RJ45 connections for Ethernet and serial communication

USB A port for WIFI access or software upgrade

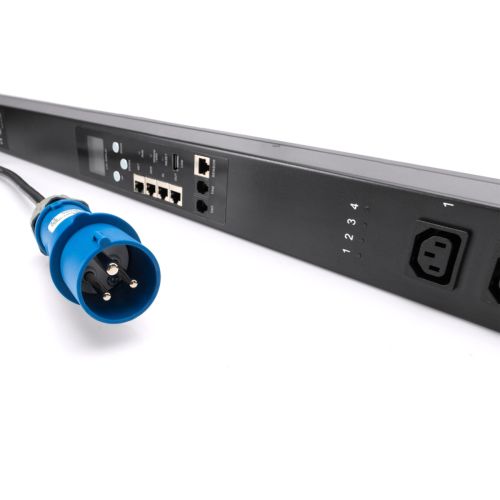

Mains cable: 3 x 2.5 mm², IEC60309 16 A plug

Cable: 3 m

Max. load: 4000 W / 250 V AC / 16 A (50/60 Hz)

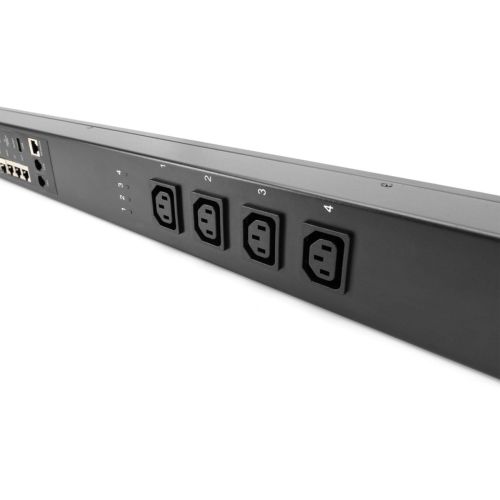

Outlets: 16 x C13 outlet

Output power: C13 (10A)

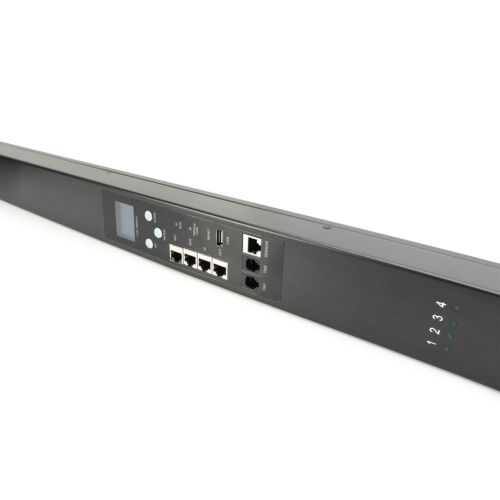

180 degree rotating HD display

Dimensions (LxWxD): 1730 x 66 x 52 mm

Temperature range (operation / storage): 0 °C to +45 °C/ -20 °C to +70 °C

Humidity range (operation / storage): 5% - 95% RH / 5 - 95% RH (non-condensing)

Maximum height above sea level (operation / storage): 0 - 3,000 m / 0 - 15,000 m

Color: Black

Protection type: IP44
