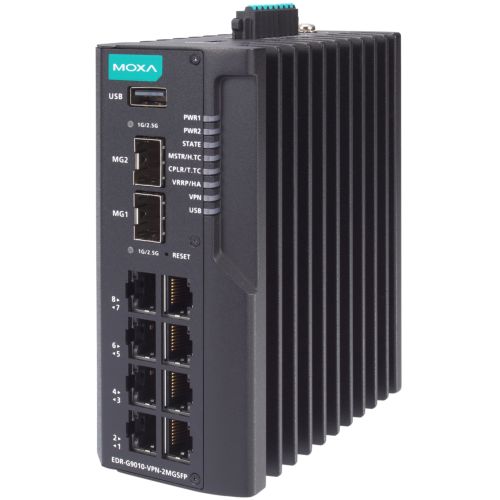

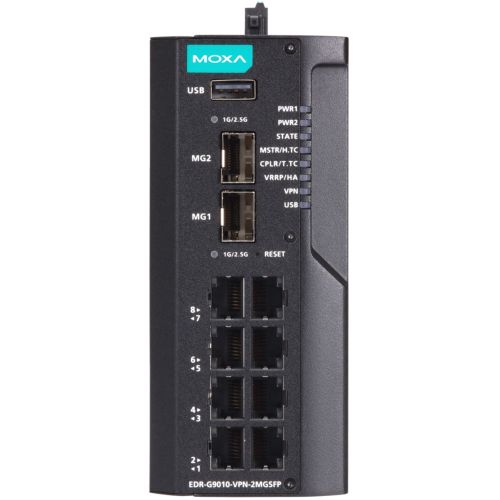

EDR-G9010-VPN-2MGSFP-T MOXA Router Firewall

Features and Benefits

•  All-in-one firewall/NAT/VPN/router/switch with 10 GbE ports
•  Secure remote access tunnel with VPN
•  Stateful firewall protects critical assets
•  Inspect industrial protocols with PacketGuard technology
•  Easy network setup with Network Address Translation (NAT)
•  RSTP/Turbo Ring redundant protocol enhances network redundancy
•  Security features based on IEC 62443/NERC CIP
•  Supports secure boot for checking system integrity
•  Check firewall settings with the intelligent SettingCheck feature
•  -40 to 75°C operating temperature range (-T model)

 Introduction

The EDR-G9010 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN and managed Layer 2 switch functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation.

Defend Against Malicious Threats With Advanced Cybersecurity Features

The EDR-G9010 Series’ embedded firewall uses policy rules to control network traffic between trusted zones while Network Address Translation (NAT) shields the internal network from unauthorized access by outside hosts. The Virtual Private Networking (VPN) functionality further provides users with secure communication tunnels when accessing the private network from the public Internet. To help protect your OT assets from cyberattacks, the EDR-G9010 Series supports Deep Packet Inspection (DPI) to examine the data portion of network packets for various OT-specific protocols.

Specifications

Input/Output Interface

Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
Buttons: Reset button
Digital Input Channels:
    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector): 8
1000BaseSFP Slots: 2
Standards:
IEEE 802.1Q for VLAN Tagging
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Broadcast Forwarding: IP directed broadcast, broadcast forwarding
Management: Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP, HTTPS, SSH
Redundancy Protocols: RSTP, STP, Turbo Ring v2
Routing: Throughput: 350K packets per second (max. 1500 Mbps)
Routing Table: Max. 4K routing rules
Concurrent Connections: Max. 400K
Connections Per Second: Max. 20K
Routing Redundancy: VRRP
Security: Secure Boot, IPsec, L2TP (server), RADIUS, Trust access control
Time Management: NTP Server/Client, SNTP
Unicast Routing: OSPF, RIPV1/V2, Static Route
Multicast Routing: Static Route
Filter: IGMP v1/v2/v3

Switch Properties

VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
Max. No. of VLANs: 16

LED Interface

LED Indicators:PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
