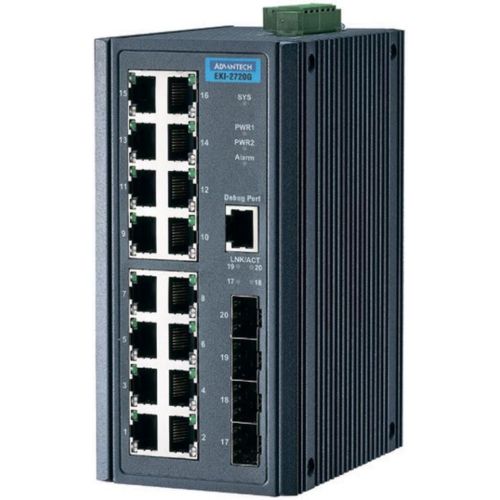

EKI-2720G-4F-AE ADVANTECH Gigabit Managed Switches



16-Ports 10/100/1000BASE-T/TX RJ-45 + 4-Ports SFP Industrial Managed Redundant Ethernet Switch, -10 ~ 60 °C Operating Temperature


Prezzo per pezzo

€ 680,66

(IVA esclusa)

€ 830,41 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 830,41

Disponibilità: 10 gg lav


SKU: 117292

Model: EKI-2720G-4F-AE

Line: 1G

Bisogno di aiuto?


  • 16 x Gigabit Ethernet ports + 4 x SFP ports
  • SFP socket for easy and flexible fiber expansion
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP
  • (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • NEMA TS2 for traffic control
  • EN50121-4 approval for railway trackside deployment
  • Wide operating temperature range of -40 ~ 75°C (EKI-7720G-4FI)
  • Dual 12 ~ 48 VDC power input and 1 x relay output
  • Support Security Pack to against internal and external cyber threats


The EKI-7720G-4F and EKI-7720G-4FI provide users with abundant port options for connecting to various device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports.
These switches are embedded with Advantech’s IXM function, which can benefit users with fast deployment and can dramatically save on engineering time and costs. The series also
support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed
recovery times of <20 ms, thus ensuring network stability. The EKI-7720G-4FI in particular features a wide operating temperature range of wide -40 ~ 75°C.



I/O Port:
16 x 10/100/1000BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port
Console port: RS-232 (RJ45)
Power Connector: 6-pin screw Terminal Block (including relay)


Enclosure: Metal Shell
Protection Class: IP 30
Installation: DIN-Rail
Dimensions (W x H x D): 74 x 152 x 105 mm (2.91" x 5.98" x 4.13")

LED Display

System LED: PWR1, PWR2, SYS, Alarm and R.M.
Port LED: Link / Speed / Activity


Operating Temperature: -10 ~ 60°C (-40 ~ 140°F)
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 10 ~ 95% (non-condensing)
Humidity: 10 ~ 95% (non-condensing)


Power Consumption: TBC
Power Input: 12 ~ 48 VDC, redundant dual power input
Fault Output: 1 Relay Output


EMI: CE, FCC Class A
Safety: UL61010-2-201
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Traffic control: NEMA TS2
*= Compliant
