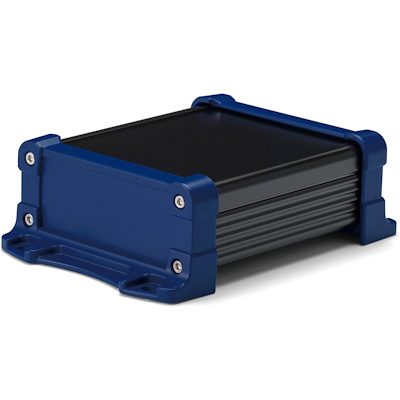

EXWF9-6-10BN
IP65 Flanged Aluminium Case Black/Navy Color Type, W86 x H64 x D99, L124.8
Prodotti Correlati
Specifications
Protection Class: IP65
External Dimensions: W86 x H64 x D99 , L124.8
Internal Dimensions: a67 x b50 x c86
Color Code (BN): Black/Navy
Flanged end Panel Material: PC+ABS UL94V-0
Flanged end Panel Color / Finish: Navy / Painted
Flanged end Panel Pcs: 2
Top Cover Material: Extruded Aluminium A6063S-T5
Top Cover Color / Finish: Black / Anodized
Top Cover Pcs: 1
Bottom Cover Material: Extruded Aluminium A6063S-T5
Bottom Cover Color / Finish: Black / Anodized
Bottom Cover Pcs: 1
Panel Gasket Material: Silicone
Panel Gasket Color / Finish: Black
Panel Gasket Pcs: 2
Cover Gasket Material: Silicone
Cover Gasket Color / Finish: White Gray
Cover Gasket Pcs: 2
Screw Material: Stainless Steel
Screw Color / Finish: Unfinished
Screw Pcs: 8
