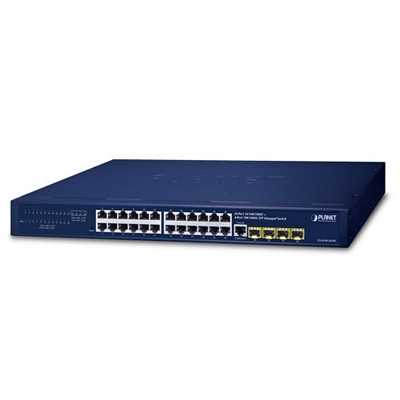

GS-4210-24T4S Planet Managed

Perfect Managed Switches with Advanced L2/L4 Switching and Security

PLANET GS-4210-24T4S and GS-4210-24T4SR are the ideal Gigabit Switches which provide cost-effective advantage to local area networks and are widely accepted in the SMB office network. They offer intelligent L2/L4 data packet switching and management functions, friendly web user interface and stable operation. Besides the popular IPv6/IPv4 management and abundant L2/L4 switching functions, the GS-4210-24T4S and GS-4210-24T4SR come with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.
The GS-4210-24T4S and GS-4210-24T4SR are equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 4 additional 100/1000BASE-X SFP interfaces with built-in AC or AC+DC redundant power system. They offer a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management.

Applications

Department/Edge Security and QoS Switch

The GS-4210-24T4S and GS-4210-24T4SR connect up to 24 high-speed workstations in the Ethernet environment, in which their four SFP mini-GBIC interfaces provide an uplink to a department backbone. Moreover, the Switches provide 56Gbps switch fabric and high bandwidth for backbone connection. The GS-4210-24T4S and GS-4210-24T4SR improve the network efficiency and safeguard the network clients with their powerful features:

• IPv6/IPv4 management
• Layer 2 to Layer 4 security
• QoS
• 802.1x port-based and MAC-based network access authentication security
• Multicast IGMP snooping

The advanced functionality of the GS-4210-24T4S and GS-4210-24T4SR eliminates traditional issues associated with the use of Ethernet. Users can be separated with advanced VLAN functionality to enhance security. It makes the GS-4210-24T4S and GS-4210-24T4SR one of the best and most cost-effective switch solutions for SMBs.

Features and Benefits

Physical Port

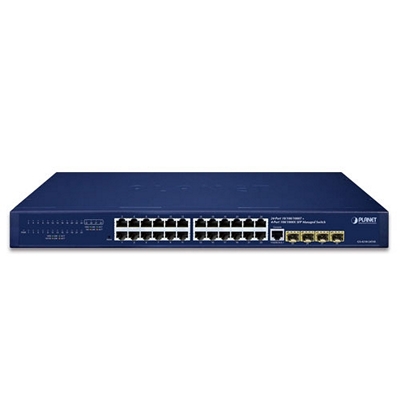

• 24-Port 10/100/1000BASE-T Gigabit RJ45 copper
• 4 100/1000BASE-X mini-GBIC/SFP slots
• RJ45 console interface for switch basic management and setup
• Reset button for system factory default

Switching

• Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 10K jumbo frame
• Automatic address learning and address aging
• Supports CSMA/CD protocol

Specifications

Hardware Specifications

Copper Ports: 24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots: 4 x 100/1000BASE-X SFP interfaces with Port-25 to Port-28.
Supports 100/1000Mbps dual mode and DDM
Console: 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
LED: System:
Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port 25 to Port 28):
1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
Dimensions (W x D x H): 441 x 207 x 44 mm, 19-inch, 1U height
Weight: 2.1kg
ESD Protection: Contact Discharge 4KV DC
Air Discharge 8KV DC
Enclosure: Metal

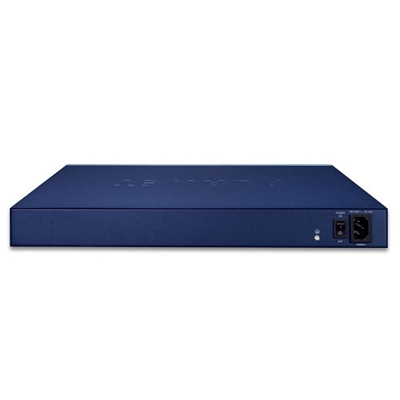

Power Requirements: AC 100~240V, 50/60Hz, auto-sensing
Power Consumption / Dissipation: 19.3 watts (max.)/65BTU

Switching

Switch Architecture: Store-and-Forward
Switch Fabric: 56Gbps/non-blocking
Switch Throughput@64Bytes: 41.67Mpps
Address Table: 8K entries
Shared Data Buffer: 4.1 megabits
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 10K bytes

Layer 2 Functions

Port Mirroring: TX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN: 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation: IEEE 802.3ad LACP/Static Trunk
Supports 8 trunk groups with 8 ports per trunk
Spanning Tree Protocol: STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping: IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD Snooping: MLD (v1/v2) Snooping, up to 256 multicast groups
QoS: 8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR

Security Functions

Access Control List: IPv4/IPv6 IP-based ACL/MAC-based ACL
Port Security: IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security: IP-MAC port binding
MAC filter
Static MAC address
Enhanced Security: DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Management Functions

Basic Management Interfaces: Web browser/Telnet/SNMP v1, v2c
Secure Management Interfaces: SSHv2, TLS v1.2, SNMP v3
System Management: Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Remote/Local Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET UNI-NMS central management software
SNMP MIBs: RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2

Environment

Operating: Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
