GS-4210-8UP2X Planet Managed POE

Features

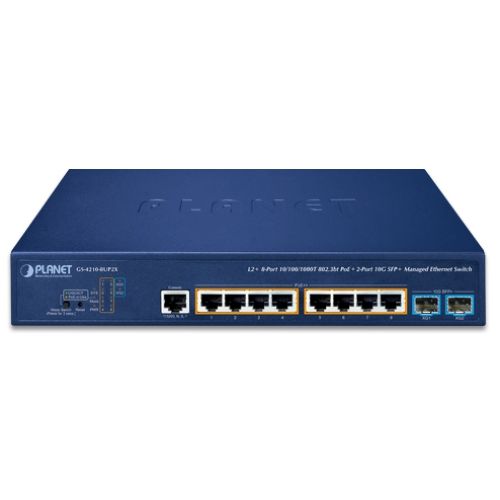

Physical Port

• 8 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 8)
• 2 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG2)
• RJ45 to DB9 console interface for switch basic management and setup

Switching

• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 16K MAC address table size
• 12K jumbo frame
• Automatic address learning and address aging

Power over Ethernet

• Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
• 8 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (Ports 1-8)
• Total PoE power budget of 240 watts
• Automatic detection of powered devices (PD)
• Built-in circuit protection to prevent power interference between ports
• Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
• Advanced PoE management capabilities:
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• Detection of PD classification
• Intelligent PoE features
• PD alive check
• PoE schedule
• Scheduled power recycling

Layer 2 Features

• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
• Protocol VLAN
• Private VLAN (Protected port)
• Management VLAN
• GVRP
• Supports Spanning Tree Protocol
• STP (Spanning Tree Protocol)
• RSTP (Rapid Spanning Tree Protocol)
• MSTP (Multiple Spanning Tree Protocol)
• STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 8 trunk groups, up to 8 ports per trunk group
• Supports port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)

Quality of Service

• Ingress and egress rate limit per port bandwidth control
• Storm control support
• Broadcast/Unknown unicast/Unknown multicast
• Traffic classification
• IEEE 802.1p CoS
• TOS/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering

Security

• Authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ login user access authentication
• DHCP Option 82
• Access control list
• IPv4/IPv6 IP-based ACL
• IPv4/IPv6 IP-based ACE
• MAC-based ACL
• MAC-based ACE
• MAC security
• Static MAC
• MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• DoS attack prevention

Management

• IPv4 and IPv6 dual stack management
• Switch management interface
• Web switch management
• Console and telnet command line interface
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.3 and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface link up and link down notification
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System maintenance
• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through HTTP/TFTP
• Dual images
• Hardware-based reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic
• SFP-DDM (digital diagnostic monitor)
• Cable diagnostics
• ICMPv4/ICMPv6 remote ping
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS and CloudNMS for deployment management

Applications

ITU-T G.8032 ERPS with PoE IP Surveillance System for SMBs/Workgroups

The GS-4210-8UP2X features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer's automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the GS-4210-8UP2X can directly connect with any IEEE 802.3at end nodes like PTZ (pan, tilt, zoom) network cameras and speed dome cameras. The GS-4210-8UP2X can easily build a power that can centrally control a wireless AP, IP camera and VoIP system for SMBs and workgroups in the enterprises with high availability network infrastructure.

Gigabit 802.3bt PoE++ and PoE+ Network Deployment Solution

PLANET GS-4210-8UP2X can easily build an 802.3bt PoE++ networking solution on the cybersecurity system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today's businesses. The GS-4210-8UP2X and 802.3bt PoE++ Splitter-POE-173S, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-4210-8UP2X, the POE-173S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ, network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
