GS-6320-8P2X Planet Managed POE

 Perfect Managed PoE+ Switch with L3/L2 Switching and Security

PLANET GS-6320-8P2X Layer 3 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 OSPFv2 dynamic routing and static routing, and provides 8 10/100/1000BASE-T ports featuring 802.3at PoE+ and 2 extra 1/2.5/10 Gigabit BASE-X SFP+ fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 120 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

Applications

Layer 3 VLAN Static Routing and PoE Application

With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the GS-6320-8P2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The GS-6320-8P2X is certainly a cost-effective and ideal solution for enterprises.
Providing up to 8 Gigabit PoE+ ports and in-line power interface, the GS-6320-8P2X PoE+ Managed Switch can easily build a centrally-controlled power network shared by wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises.

PoE Wi-Fi Hotspot Solution with Extended Network Infrastructure for Public Spaces

The GS-6320-8P2X comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing eight 10/100/1000BASE-T PoE+ ports, in-line power interfaces and two 10 Gigabit SFP interfaces, the GS-6320-8P2X can easily build a Networking Authentication on Wireless LAN Controllers system for the enterprises. For instance, it can work with the Wireless Controller and RADIUS Server to perform comprehensive security for wireless user authentication with powered APs.

Features and Benefits

Physical Port
8-port 10/100/1000BASE-T with 36W PoE injector function
2-port 1G/2.5G/10G BASE-X SFP+
RS232 RJ45 console interface for switch basic management and setup

Hardware Specifications

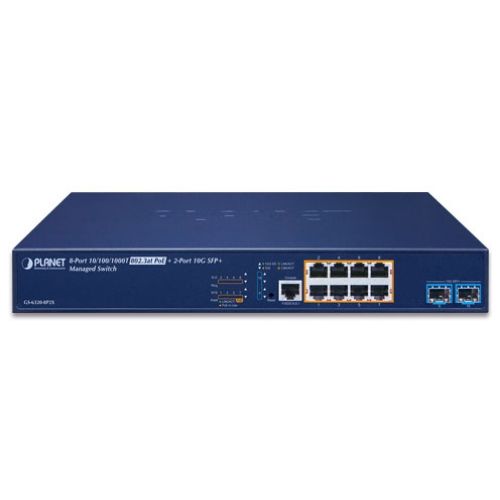

Copper Ports: 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-8
SFP/mini-GBIC Slots: 2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-9 to Port-10
PoE Injector Port: 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console: 1 x RJ45 serial port (115200 , 8, N, 1)
Reset Button:
 < 5 sec: System reboot
 > 5 sec: Factory default
Dimensions (W x D x H): 330 x 150 x 44.5 mm, 1U height
Weight: 1.6 KG

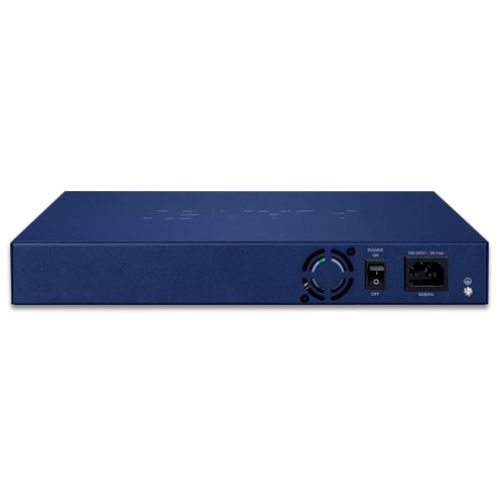

Power Requirements: 100~240V AC, 50/60Hz
Power Consumption:
 Max. 14.8 watts/50.47BTU (Power on without any connection)
 Max. 162watts/552.42BTU (Full loading with PoE+ function)
 ESD Protection 6KV DC

LED System:
　R.O. (Green), Ring (Green), SYS (Green), PWR (Green)
10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8):
　10/100/1000Mbps LNK/ACT (Green)
　PoE-in-Use (Amber) (Port 1 to Port 8)　
1G/2.5G/10G Mbps SFP Interfaces (Port 9 to Port 10):
　1G/2.5G LNK/ACT (Green)
　10G LNK/ACT (Amber)
