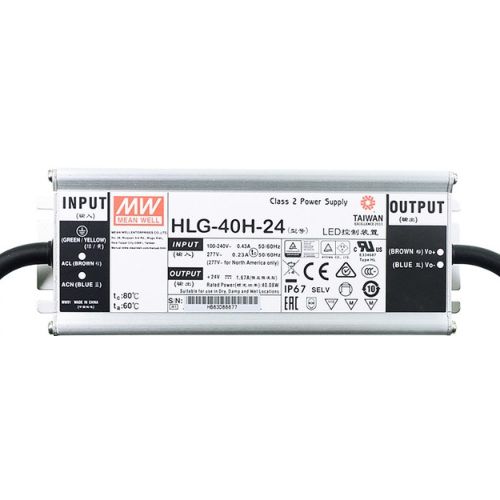

HLG-40H-24
AC/DC Enclosed LED Single output 40W 24Vdc 01.67A with PFC IP67 cable for I/O connection
Bisogno di aiuto?
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type "HL" for use in Class I , Division 2 hazardous (Classified) location.
Description
HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HLG-40H operates from 90 ~ 305VAC and offers models with different rated voltage ranging
between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is
able to operate for -40°C ~ +80°C case temperature underfree air convection. The design of metal housing
and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-40H
is equipped with various function options, such as dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.
Specifications
OUTPUT
DC VOLTAGE: 24V
CONSTANT CURRENT: 14.4 ~ 24V
RATED CURRENT: 1.67A
RATED POWER: 40.08W
RIPPLE & NOISE (maX.): 200mVp-p
INPUT
VOLTAGE RANGE: 90 ~ 305VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
Ac CURRENT (Typ.): 0.43A/115VAC 0.24A/ 230VAC 0.23A/ 277VAC
