IAP2300C-2A22-1T 3ONEDATA Industrial wireless ap



300Mbps Dual Brand Wireless Client, 2.4G+2.4G,1 Port 100M RJ45,1*3IN1 Serial Port,12-36VDC,Din-Rail Or Wall Mounting,seamless roaming


Prezzo per pezzo

€ 275,13

(IVA esclusa)

€ 335,66 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 335,66

Disponibilità: 15 gg lav


SKU: 119660

Model: IAP2300C-2A22-1T

Bisogno di aiuto?

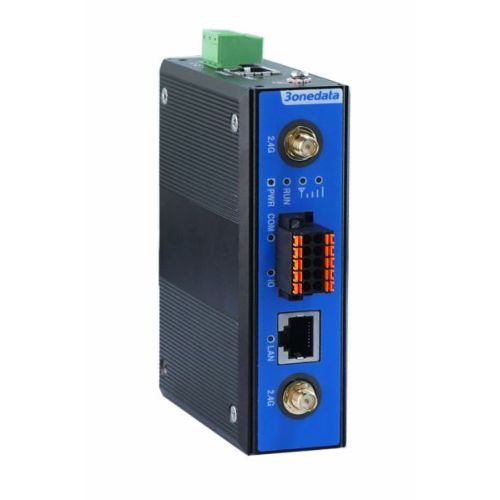

IAP2300C-2A22-1T-1D-P12_36 is a 100M industrial wireless client. This product provides 1 100M LAN port, 1 3IN1 serial port, 2 IO ports (reserved) and 2 2.4G antenna interfaces. It also adopts rail or wall mounting, which can meet the requirements of different application scenes. The network management system supports dual link working mode and IEEE802.11b/g/n wireless technology. The maximum rate of the whole machine can reach 150Mbps, which meets the demand of fast data transmission. Each serial port supports 4 TCP or UDP session connections, supporting RealCom, TCP Server, TCP Client, UDP Server, UDP Client and other working modes; The device supports single link fast roaming and double link seamless roaming. In wireless local area network composed of multiple APs, seamless roaming can be realized without AP switching operation

Features and Benefits

  • Support dual link working mode
  • Support 802.11r-based single-link fast roaming and dual-link seamless roaming technology
  • Support 300bps-115200bps line speed and non-blocking communication
  • Support a variety of serial working modes : RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
  • -40~75℃ large range operating temperature
  • Strong anti-interference ability and high defensiveness, which can adapt to all kinds of severe environments easily


Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE802.11b/g/n for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming

Working mode

Dual-link mode

Radio Frequency

802.11b/g/n: 2.412GHz~2.4835GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Receiving sensitivity

802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7
802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7
802.11g: -91dBm@6Mbps, -72dBm@54Mbps
802.11b: -93dBm@1Mbps, -87dBm@11Mbps

Transmitting power

802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7
802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7
802.11g: 20dBm@6Mbps, 20dBm@54Mbps
802.11b: 20dBm@1Mbps, 20dBm@11Mbps
