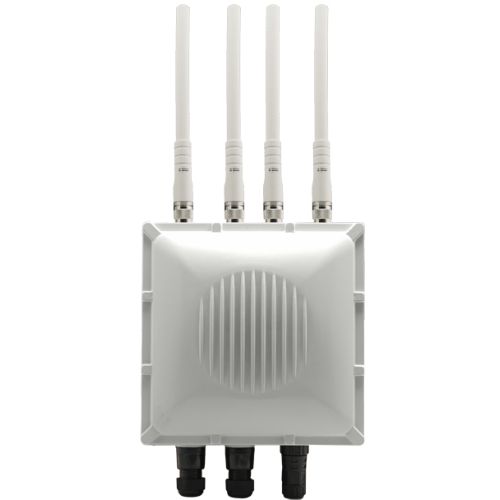

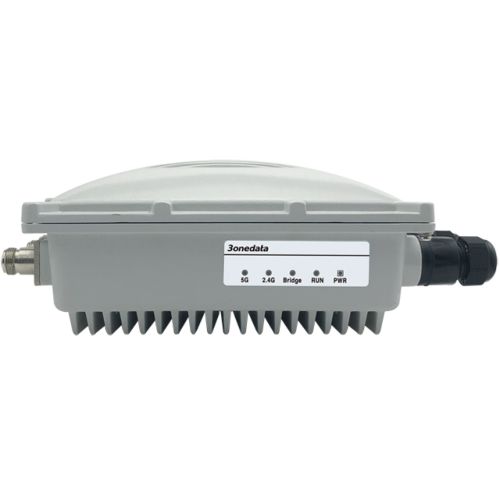

IAP2600-4A25-PDP, 1200Mbps Wireless Dual Band Access Point, outdoor
IAP2600-4A25-PDP
1200Mbps Wireless Dual Band Access Point, outdoor
SPEDIZIONE GRATUITA
Introduction
IAP2600 series are gigabit industrial outdoor dual-band wireless AP. This series provide1gigabit PoE WAN, 2 2.4G antenna interfaces, 2 5.8G antenna interfaces and 112~48VDCpower supply (optional). They also adopt wall mounting or pole mounting, whichcanmeetthe requirements of different application scenes. The network management system supports four operating modes includingRoute, AP,Bridge and Client, and IEEE802.11b/g/n/a/ac wireless technology. The highest rateofcomplete machine could reach 1167Mbps and meet the needs of quick data transmission.The device supports wireless encryption methods like WEP SHARED, WPA2-PSKetc. Italso possesses SSID concealing, wireless user isolation, MAC address filtering, ARPbinding, DMZ setting and other security strategies. Supports virtual AP, that is, anAPdevicesupports multiple SSID; supports fast roaming, that is, in the WLAN (Wireless Local AreaNetwork) constituted by multiple AP, user can achieve fast roaming without conductingtheswitching operation
Features and Benefits
- Support four operating modes: Route, AP, Bridge and Client
- Support high-speed wireless connection, 2.4GHz transmission speed couldreach300Mbps, 5.8GHz could reach 867Mbps
- Support dual-band 2×2MIMO and 4 dual-RF omnidirectional antennas
- Support simultaneous connection of 100 clients
- Support multiple AP fast roaming technology, switching time is less than 50msSupport wireless probe, which can achieve personal locating function matchingwithlocation engine
- Support switching function of SSID broadcast
- Support multiple SSID setting and provides SSID concealing function
- Support port forwarding, ARP binding, DMZ isolation area and other firewall functionsSupport WEP/WPA/WPA2 authentication function
- Support hardware watchdog, which ensures the reliability of the systemSupport wireless user management and flow monitoring
- Support -40~75℃ wide operating temperature range
- Industrial grade 4 design, support power supply and port isolation protectionGreat anti-jamming and defense capability, suit for any harsh environments
Specification
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE802.11b/g/n/a/ac for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.3af/at for PoE
Operating Mode
Route, AP, bridge, client
Network Settings
Intranet setting, outer network setting, wireless setting, roamingsetting, wireless probe
Firewall (route mode)
IP filtering, MAC filtering, URL filtering, port forwarding, ARPbinding, DMZ setting
Radio Frequency
802.11b/g/n: 2.412GHz~2.4835GHz
802.11ac/n/a: 5.18GHz~5.825GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiving Sensitivity
802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7
802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7
802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps
802.11b: -93dBm@1Mbps, -87dBm@11Mbps
802.11ac：-84dBm@MCS0, -59dBm@MCS9
Transmitting Power
802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7
802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7
802.11g/a: 20dBm@6Mbps, 20dBm@54Mbps
802.11b: 20dBm@1Mbps, 20dBm@11Mbps
802.11ac: 20dBm@MCS0, 20dBm@MCS9
