ICA-A4280 Planet Ip cameras

ICA-A4280 Planet

ICA-A4280

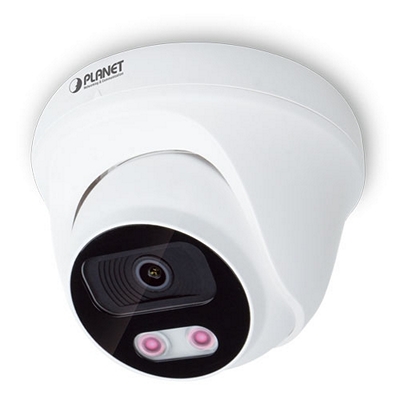

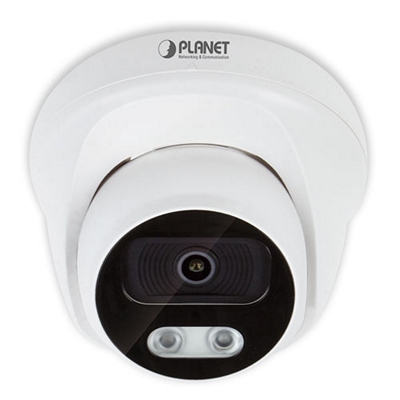

H.265 1080p Smart IR Dome IP Camera with Artificial Intelligence

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 122,62

Prezzo di 1 pz. iva (22%) inclusa: € 149,60

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: PLANET

SKU: 116129

Model: ICA-A4280

 Built-in Unique Brand-new Artificial Intelligence Technology

To fulfill the deployment demand for the new-generation Artificial Intelligence and Internet of Things (IoT), PLANET ICA-A4280 Smart Camera is embedded with Artificial Intelligence that features Face Recognition, Face Comparison, Intrusion, Loitering, Line Crossing, People Gathering Detection.
Incorporating the Sony STARVIS back-illuminated CMOS sensor and 25-meter smart IR illuminators, which are specially designed for surveillance applications, the ICA-A4280 provides sharp images under all lighting conditions and multiple event rules for higher accuracy and better alarm system.

Applications

Security IP Surveillance Deployment with Artificial Intelligence

PLANET ICA-A4280 with built-in Face Recognition and other Artificial Intelligence functions can offer high security surveillance applications under various operation environments, such as airports, railway stations, public transportation systems, department stores, and more.

High Scalability for Various Industrial IP Surveillance Solutions

PLANET high-resolution ICA-A4280 can offer various surveillance applications as it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-A4280 supports 802.3af PoE PD interface, and facilitates the outdoor surveillance applications without worrying the electric source. Besides, Planet VMS, NVR, HDVR, Web UI and App management make you easy to do the configuration and live viewing. With powerful features offered, the ICA-A4280 no doubt is your best choice for outdoor surveillance solution.

Features and Benefits

Camera

1/2.8" Sony STARVIS back-illuminated CMOS sensor
3.6mm fixed with 3MP lens
0.005 lux minimum illumination at F1.2
Built-in smart IR illuminators, effective up to 25 meters
Removable IR-cut filter for Day & Night function

Specifications

Camera

Image Sensor: 1/2.8" Sony STARVIS back-illuminated CMOS sensor
Lens: Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels:3MP
Angle of view:
- Horizontal: 80 degrees
- Vertical: 62 degrees
Min. Illumination: 0.005 lux (color) @ F1.2
2lux (B/W) @ IR on
IR Illuminations: Built-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V): 1945 x 1097

Power over Ethernet

PoE Standard: IEEE 802.3af PoE PD


Video Compression: H.264(+)/H.265(+)/MJPEG
Frame Rate: Up to 15~25 fps for all resolutions
Bitrate: 32~16384kbps
Shutter Time: Auto, PAL/NTSC (1/25 sec. ~ 1/10000 sec.)
Image Setting: Image Adjustment
Exposure Settings
Backlight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
OSD Settings (Text, time and date overlay and overlay image on video)
Motion detection, video tampering, alarm Input
3 configurable regions of privacy mask to protect personal privacy
Streaming: Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
MJPEG streaming over HTTP (server push)
Constant and variable bit rate
ROI (Region of Interest)

Artificial Intelligence

Intelligent Analysis: Face Recognition
Intrusion Detection
Line Cross Detection
Loitering Detection
People Gathering Detection
Recognition: Face Detection and Recognition
Number of faces per frame: 32
Capture rate: >99.5%
Repeat capture rate: <15%
False capture rate: <0.5%
Number of supported faces: 10,000
Minimum detection of face pixels: 25 x 25
Maximum detection of face pixels: 300 x 300

Audio

Audio Streaming: Two-way audio
Audio Compression: G.711A/G.711U
Audio Input: External microphone input
Audio Output: External speaker output

Networking & Configuration

Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
Protocol: IPv4 DHCP Client and IPv4 Static IP Address management
PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption, PTZ and IPEYE
Security: User Management options for various authority
Admin / Operator / Guest
Users: On-line monitoring of 16 clients at the same time
Web Brower: IE8~11, Google Chrome, Firefox, Mac Safari
App: YES (Android, IOS with P2P QR code)
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese

System Integration

Application Programming Interface: ONVIF compliant
Alarm Triggering: Motion Detection / Video Tampering / Alarm Input
Face Recognition / Intrusion Detection / Line Cross Detection / Loitering Detection / People Gathering Detection
Alarm Events: SMTP, FTP, Cloud (Google, Dropbox), SD card

Hardware Specifications

Power Requirements: 12V DC, 0.7A
IEEE 802.3af
Power Consumption: 8W (IR on)
Dimensions (Φ x L): 94.5 x 76 mm
Weight: 450g
SD Card Slot: Micro SD (512GB maximum)
LED: 42μ x 2pcs

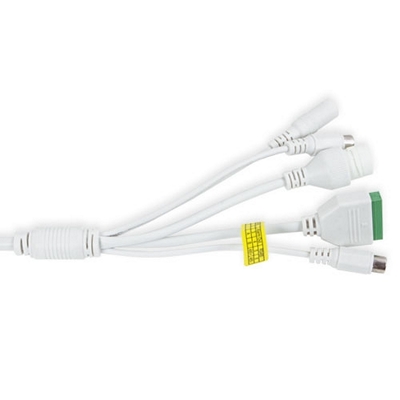

Connector: 10/100Mbps Ethernet, waterproof and dustproof RJ45 connector
DC power jack
RCA audio in /out (white)
Alarm in/out (1~4) and RS485 (5~6)
Enclosure: IP67 metal case

Standards Conformance

Regulatory Compliance: FCC Part 15 Class B, CE

Environment

Operating: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
