ICA-M4580P Planet Ip cameras

ICA-M4580P Planet

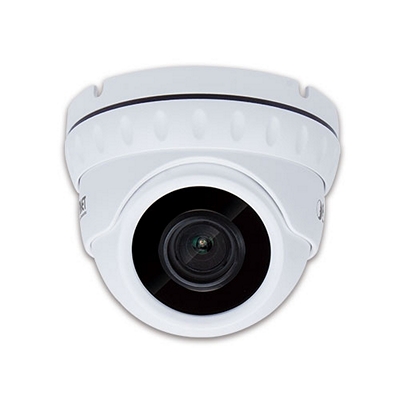

H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom


Prezzo per pezzo

€ 116,91

(IVA esclusa)

€ 142,63 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 142,63

Disponibilità: 15 gg lav


SKU: 116131

Model: ICA-M4580P

Bisogno di aiuto?

 Excellently Efficient Surveillance Video

PLANET ICA-M4580P PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 5 mega-pixel resolutions and 3 streaming capabilities. Users will benefit from reduced 50% bandwidth and data storage through more efficient video compression.
Incorporating the Sony STARVIS back-illuminated CMOS sensor and 30-meter Smart IR illuminators, which are specially designed for surveillance applications, the ICA-M4580P provides sharp images under all lighting conditions. With the 2.7~13.5mm motorized focus and 5x zoom, users can remotely adjust the focus and zoom from the web interface. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-M4580P, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.


High Scalability for Various Industrial IP Surveillance Solutions

PLANET high-resolution ICA-M4580P can offer various surveillance applications as it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-M4580P supports 802.3af PoE PD interface, and facilitates the outdoor surveillance applications without worrying the electric source. Besides, Planet VMS, NVR, HDVR, Web UI and App management make you easy to do the configuration and live viewing. With powerful features offered, the ICA-M4580P no doubt is your best choice for outdoor surveillance solution.

Features and Benefits


  • 1/2.8" 5 megapixel SONY STARVIS Back-illuminated CMOS sensor
  • 2.7-13.5mm 5X motorized zoom auto focus lens
  • Remote smart focus for remote and precise focus adjustment
  • 0.005 lux minimum illumination at F1.2
  • Built-in smart IR illuminators, effective up to 30 meters
  • Removable IR-cut filter for Day & Night function



Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
Lens: Focus Length: 2.7-13.5mm
Focus Control: Auto
Lens Type: Motorized
Pixels: 5MP
Angle of view:
- Horizontal: 24~90 degrees
- Vertical: 17~74 degrees
Min. Illumination: 0.005 lux (color) @ F1.2
2lux (B/W) @ IR on
IR Illuminations: Built-in smart IR illuminators, effective up to 30 meters
*The IR distance is based on the environment
Effective Pixels (H x V): 2616 x 1964

Power over Ethernet

PoE Standard: IEEE 802.3af PoE PD


Video Compression: H.264(+)/H.265(+)/JPEG/AVI/M-JPEG
Frame Rate: Up to 15~30 fps for all resolutions
Bitrate: 32~16384kbps
Shutter Time: Auto: PAL 1/25-1/10000 sec; NTSC 1/25-1/10000 sec
Image Setting: Image Adjustment
Exposure Settings
BackLight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
OSD Settings (Text, time and date overlay and overlay image on video)
Motion detection, video tampering
3 configurable regions of privacy mask to protect personal privacy
Streaming: Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
M-JPEG streaming over HTTP (server push)
Constant and variable bit rate
ROI (Region of Interest)


Audio Streaming: One-way audio
Audio Compression: G.711A/G.711U
Audio Input: External microphone input
Audio Output: /

Networking & Configuration

Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
Protocol: IPv4 DHCP Client and IPv4 Static IP Address management
PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE
Security: User Management options for various authority
- Admin
- Operator
- Guest
Users: On-line monitoring of 16 clients at the same time
Web Brower: IE8~11, Google Chrome, Firefox , Mac Safari
APP: YES (Android, IOS with P2P QR code)
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese

System Integration

Application Programming Interface: ONVIF compliant
Alarm Triggering: Motion detection/video tampering
Alarm Events: SMTP, FTP, Cloud (Google, Dropbox)

Hardware Specification

Power Requirements: 12V DC, 0.95A
IEEE 802.3af
Power Consumption: 8W (IR on)
Dimensions (Φ x L): 131 x 93 mm
Weight: 800g
Reset Button: YES
LED: 14μ x 24pcs

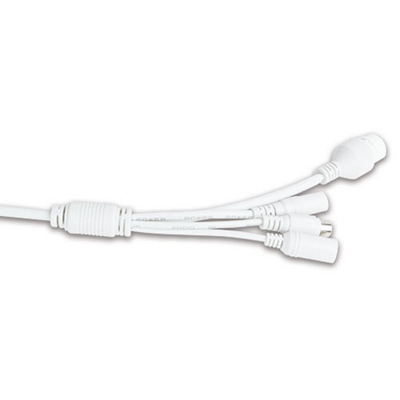

Connector: 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
RCA audio in (white)
Enclosure: IP67 metal case

Standards Conformance

Regulatory Compliance: FCC Part 15 Class B, CE


Operating: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
