ICA-W8100 Planet Ip cameras

ICA-W8100 Planet

ICA-W8100

Wireless Cube Fish-Eye IP Camera

Quantità':

Prezzo per pezzo

€ 125,89

(IVA esclusa)

€ 153,59 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 153,59

Disponibilità: 10 gg lav

Brand: PLANET

SKU: 115702

Model: ICA-W8100

Bisogno di aiuto?

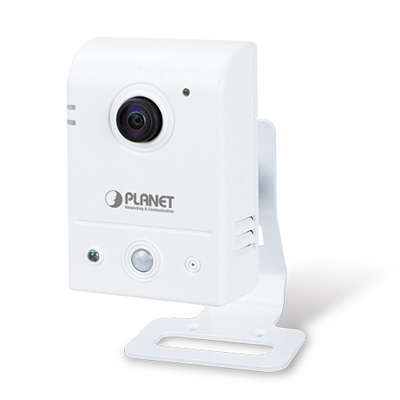

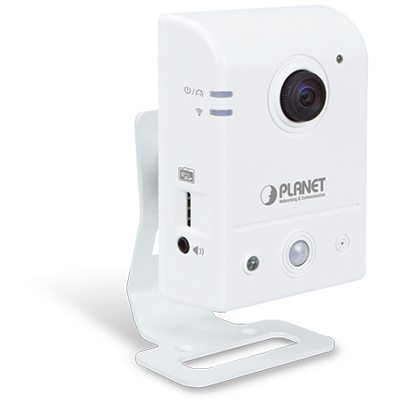

 Compact Wireless Panoramic Camera for Wide View Surveillance

The PLANET ICA-W8100 is a compact cube camera providing a 180 degree panoramic wide angle view, especially designed for indoor surveillance. Incorporating 1.3MP-resolution sensors, it supports H.264, MPEG-4, and M-JPEG compression formats and delivers excellent picture quality in up to 1280 x 720 pixels (720P) at 30 frames per second (fps). The unique design makes it the ideal solution to surveillance applications in homes, boutiques, stores or restaurants.

Wider Monitoring with 180º Panoramic View

The ICA-W8100 wireless fisheye camera allows you to monitor all angles of a location using just one camera, thus saving lots of traditional mechanical Pan/Tilt maintenance effort. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without the need of installing any other software, with the ICA-W8100, you can watch live view and utilize functions such as motion detection through the Web interface via an IE browser.

Efficient Event Management

The ICA-W8100 is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement far from 5 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W8100 will “detect” and start recording automatically. Furthermore, it provides an additional function of alarm notification that can send the captured images to the micro SD/SDHC card slot for local storage.

Enhanced Video Quality and 2-Way Audio Support

The ICA-W8100 provides the industry a more comprehensive set of performance enhancing features including Auto Electronic Shutter (AES) and Auto White Balance (AWB). Besides, the ICA-W8100 supports 2-Way audio to strengthen the event management capabilities.

High Quality Streaming via 11n Wireless Connectivity

The ICA-W8100 adopts IEEE 802.11n wireless technology to communicate at maximum wireless signal rate and ensures secure transmission with WEP and WPA encryptions. It allows you to stream high quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. Complying with ONVIF, the ICA-W8100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-W8100 is indisputably the top choice for reliable and high performance surveillance.

Applications

PLANET ICA-W8100 provides various surveillance applications to deliver clear images in 180 degree panoramic view. Thus, the ICA-W8100 can identify all objects and people in a wide range, instead of narrow view, if installed above the front door. It helps to identify objects and people. It is especially perfect for indoor surveillance in such places as homes, boutiques, department stores, restaurants, etc.

Features and Benefits

Camera

  • Fish-Eye Lens to bring a 180 degree panoramic wide angle view
  • Unique Fish-Eye hardware correction technology
  • 1.3 mega-pixel CMOS sensor
  • Passive Infrared (PIR) Sensor for enhanced motion detection

Video / Audio

  • H.264, MPEG-4 and M-JPEG video compression simultaneously
  • Simultaneous Multi-H.264 streams support
  • 2-Way audio support with enhanced audio quality

Network and Configuration

  • Wireless 802.11n connectivity / Wi-Fi Protected Setup (WPS)
  • UPnP® support for network setup & configuration
  • Auto MDI/MDI-X supported
  • RTSP / UPnP / HTTPS protocols selectable

Easy Installation & Management

  • ONVIF compliant for interoperability
  • Advanced e-PTZ, including preset point
  • Plug and Play Smart Access Technology without IP setting in router
  • Micro SD/SDHC card local video recording supported
  • Cam Viewer 3 central management software supported

Specifications

Camera

Image Device: 1/4" progressive 1.3 Mega-Pixel scan CMOS sensor
Lens: Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm
Min. Illumination: 0.5 lux @ F2
Effective Pixels: 1280 x 720 pixels (16:9)
PIR Sensor: 1 x Built-in sensor with adjustable 70 degrees direction
Effective Distance: 5 meters
Effective Coverage: 70 degrees

Video

Video Encoder: H.264 / MPEG-4 / M-JPEG
Video Resolution: H.264: 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180
Frame Rate: Up to 30fps for all resolutions
Image Setting: AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW
Streaming: Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)
Rate Control: CBR (Constant Bit Rate)
VBR (Variable Bit Rate)
UI Layout: 180 degree Single Broad View (1P)
2 PTZ Mode (2R)
180 degree Broad View + 2 PTZ Mode (1P2R)

Audio

Audio Streaming: 2-Way Audio
Audio Compression: RTSP: G.711 64kbps
Microphone: Built-in Microphone
Audio Output: Line Out for extra speaker

Network and Configuration

Network Standard: IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.11b/g/n
Network Protocol: IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba
Antenna connector: 1 x 3dBi (Max)
Frequency: 2.4GHz
RF Transmission Power: OFDM: 13dBm
CCK: 17dBm
Output Power: 802.11n: 13dBm(default) +/- 1dBm
802.11g: 13dBm(default) +/- 1dBm
802.11b: 17dBm(default) +/- 1dBm
Receiver Sensitivity: 802.11b (11Mbps):
CCK @ 8% PER = -88dBm
802.11g (54Mbps):
OFDM @ 10% PER = -72dBm
802.11n Draft 6.0:
HT20 @ 10% PER = -66 dBm
HT40@ 10% PER= -61dBm
Data Rate: 802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 150Mbps
Security: Password protection / WEP and WPA Encryption
Users: Depends on streaming data rate used

System Integration

Application Programming Interface: Open API for software integration
ONVIF
Alarm Triggers: Intelligent video motion detection and PIR sensor
Alarm Events: File upload via FTP, e-mail or Micro SD/SDHC card
Notification via e-mail, Mobile APP, and HTTP

Environment

Power Requirement: 5V DC, 2A
Power Consumption: 6W (5VDC)
Operating Temperature: 0 ~ 45 Degrees C
Operating Humidity: 20 ~ 80% (non-condensing)
Weight: 134g
Dimensions (W x D x H): 70 x 39 x 99 mm
Emission: CE, FCC

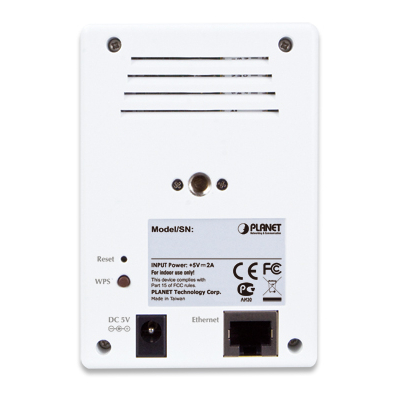

Connectors: 10/100 Mbps Ethernet, RJ-45
DC power jack
Audio out
Micro SD/SDHC card (Max 32GB, Class 6)
WPS Button
Factory default reset button
