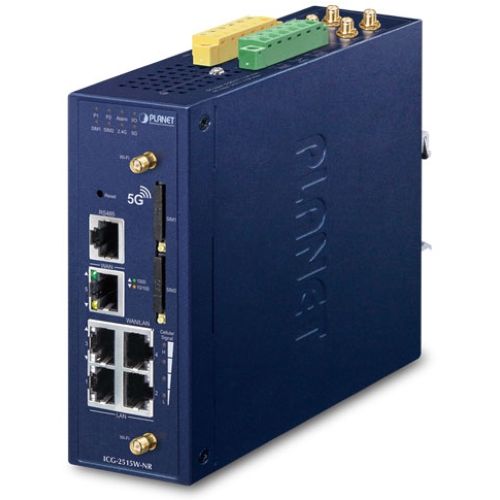

ICG-2515W-NR Planet Cellular Gateways

 Powerful 5G NR and Wi-Fi 6 Industrial Networky Solution

PLANET ICG-2515W-NR is an industrial-grade wireless cellular gateway for demanding mobile applications, M2M (machine-to-machine) and IoT deployments. Upgraded to the latest cellular technology of 5G NR (new radio), the ICG-2515W-NR is able to provide ultra-fast broadband access with 5G cellular network. The ICG-2515W-NR also features five Ethernet ports (4 LANs and 1 WAN), IEEE 11ax Wi-Fi capability, serial port (RS485), DI and DO interfaces, and VPN technology bundled in a compact yet rugged metal case. It establishes a fast cellular connection between Ethernet and serial port equipped devices. The ICG-2515W-NR is an integrated 5G NR and Wi-Fi 6 solution for industrial automation, digital factory and other industrial applications.

Applications

5G NR Cellular Communication Solution
PLANET ICG-2515W-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the ICG-2515W-NR provides dual SIM card slots and failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications.

Features and Benefits

Highlights

• Global 5G NR (NSA/SA)/4G LTE network with dual SIM design for cellular network redundancy
• Automatic failover between 5G NR and Gigabit WAN
• Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards
• 2 x DI/DO and 1 serial port (RS485) for Modbus applications
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• Stateful packet inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• Planet NMS controller system and CloudViewer app supported
• -45 to 75 degrees C operating temperature; DIN-rail and fanless designs

Hardware Specifications

Copper Ports:
        5 10/100/1000BASE-T RJ45 Ethernet ports including
        3 LAN ports (Ports 1 to 3)
        1 LAN/WAN port (Port 4)
        1 WAN port (Port 5)
Serial Interface:    RJ45 serial port
SIM Interface:   2 SIM card slots with mini SIM card tray
Cellular Antenna:    5 dBi external antennas with SMA connectors for 5G-NR

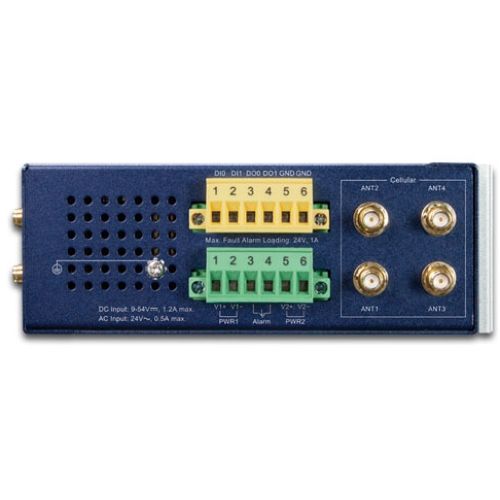

DI & DO Interfaces:
    2 Digital Input (DI):
        Level 0: -24V~2.1V (±0.1V)
        Level 1: 2.1V~24V (±0.1V)
        Input Load to 24V DC, 10mA max.

    2 Digital Output (DO):
        Open collector to 24V DC, 100mA max.
Connector:
        Removable 6-pin terminal block for power input
        Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button:
        < 5 sec: System reboot
        > 5 sec: Factory default
Enclosure:   IP30 metal case
Installation:    DIN rail, desktop, wall-mounting

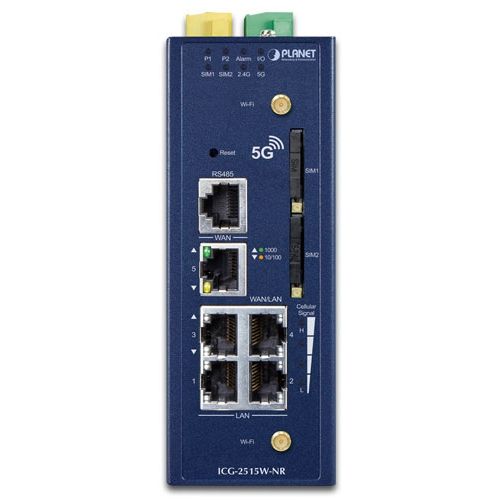

LED Indicators:
    System:
        P1 (Green)
        P2 (Green)
        Alarm (Red)
        I/O (Red)

    Ethernet Interfaces (Ports 1-4 and WAN Port):
        1000 LNK/ACT (Green)
        10/100 LNK/ACT (Amber)

    Cellular SIM:
        SIM1 and SIM2 (Green)

    Wi-Fi:
        2.4G(Green)
        5G(Green)

    Cellular signal:
        4 levels (Green)
Dimensions (W x D x H):  50 x 135 x 135 mm
Weight:  0.9 kg
Power Requirements – DC: 9~54V DC, 1.5A
Power Consumption:  10 W / 34.12 BTU
