ICR-2531
Router cellulare industriale Entry-Level 4G 4xETH
Bisogno di aiuto?
Features
- LTE Cat.4 with 3G/2G fallback
- 2× SIM for redundancy
- 4× Ethernet 10/100 Mbps (3+1 RJ45)
- 1× DI, 1× DO
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS & SW customization
Introduction
Industrial cellular router ICR-2531 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router
is its use in the Category 4 (Cat.4) services on the cellular LTE network. The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category
4 provides a peak data rate of 50 Mbps.

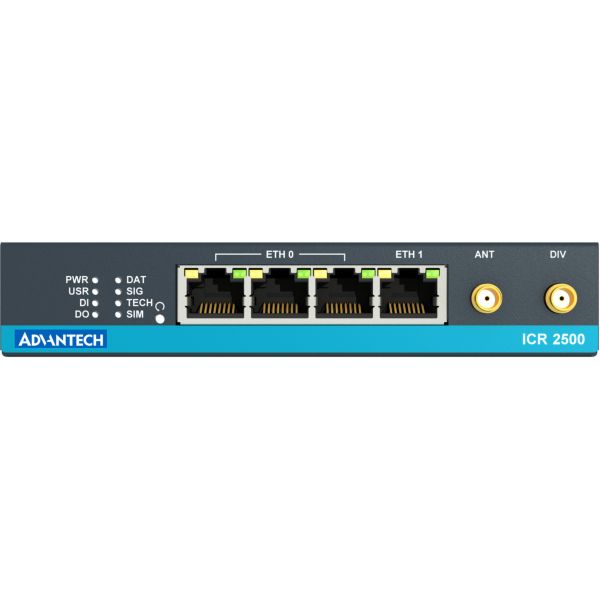

The router is equipped with four Ethernet ports while three are switched and one is separated. Both 3× ETH0 and 1× ETH1 ports may be independently configurable as LAN or WAN
interfaces. The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic
monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) with
apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx,
and others are supported on the router.
Specifications
System
CPU: ARM926EJ-S, 600 MHz
Memory:
RAM - 128 MB
NOR Flash - 64 MB
(12 MB for Router Apps, 2 MB for customer data)
Watchdog: HW Watchdog
RTC: Battery backup RTC
Interfaces
Ethernet: 4× Ethernet (3+1), RJ45, 10/100 Mbps, 1.5 kV
I / O:
1× Digital Input (36V/0.5 mA)
1× Digital Output (Open Drain, 36 V/ 100 mA)

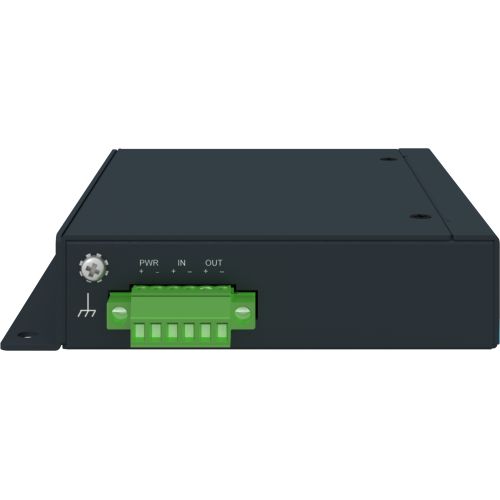

(6-pin terminal block together with PWR)
Reset Button: Reboot / Factory reset
LED Indicators: System, Signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, Input, Output, User, ETH
Environmental
Power Supply: 9 – 48 V DC (6-pin terminal block together with I/O)
Consuption: Idle 2 W / Average 3,9 W / Peak 10 W
Operating Temperature: -40 to +75 °C
Storage Temperature: -40 to +85 °C
Humidity: 5 to 95 %
IP Cover: IP30
Physical Characteristics
Dimensions: 130 mm x 95 mm x 25 mm
Enclosure: Metal Case, Grounding Screw
Mounting: Wall mount, Optional DIN Rail mount
Weight: 370 g
Cellular Interface
SIM Slots: 2× SIM (Micro SIM – 3FF)
Antennas: 2× SMA connector (1× Main, 1× Diversity)
LTE Parameters:
Supported FDD frequencies: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz)
Supported TDD frequencies: B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz)
Transfer rate: 150 Mbps (DL), 50 Mbps (UL)
HSPA+/UMTS Parameters:
Supported frequencies: B1 (2100 MHz), B8 (900 MHz)
Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)
EDGE/GPRS Parameters:
Supported frequencies: B3 (1800 MHz), B8 (900 MHz)
Transfer rate: 296 kbps (DL), 236.8 kbps (UL)
