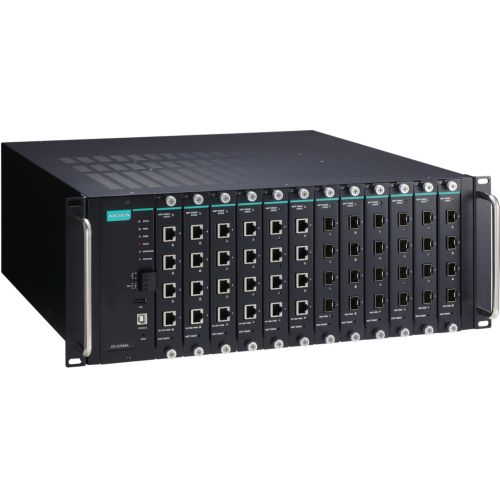

ICS-G7848A-HV-HV MOXA Industrial 10GB Core Switches



Layer 3 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature

Clicca per maggiori dettagli


Articoli Prezzo (IVA esc.)
1+ pz.€ 11.933,95
3+ pz.€ 11.575,93
5+ pz.€ 11.337,25

Prezzo di 1 pz. iva (22%) inclusa: € 14.559,42

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 94400

Model: ICS-G7848A-HV-HV

Line: 1G

Prodotti Correlati


USB-based auto backup configurator, ...

1+ pezzi:  € 137,30


License expansion of MXview industrial ...

1+ pezzi:  € 216,78

Features and Benefits

  • Up to 48 Gigabit Ethernet ports plus 4 10G Ethernet ports
  • Up to 52 optical fiber connections (SFP slots)
  • Fanless, -10 to 60°C operating temperature range
  • Modular design for maximum flexibility and hassle-free future expansion
  • Hot swap interface and power modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range


Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7848A/G7850A/G7852A series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 4 10 Gigabit Ethernet ports. The ICS-G7848A/G7850A/G7852A series also supports Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large scale industrial networks. The ICS-G7848A/G7850A/G7852A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.


     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseT(X) and 100BaseFX
     IEEE 802.3ab for 1000BaseT(X)
     IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
     IEEE 802.3ae for 10 Gigabit Ethernet
     IEEE 802.3x for Flow Control
     IEEE 802.1D-2004 for Spanning Tree Protocol
     IEEE 802.1w for Rapid Spanning Tree Protocol
     IEEE 802.1s for Multiple Spanning Tree Protocol
     IEEE 802.1Q for VLAN Tagging
     IEEE 802.1p for Class of Service
     IEEE 802.1X for Authentication
     IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTP V2, EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client, IPv6 (ICS-G7700A series)
Layer 3 Switching: Static routing, RIP V1/V2, OSPF, DVMRP, PIM-DM, PIM-SM, PIM-SSM (ICS-G7800A series)
Layer 3 Switching Redundancy: VRRP (ICS-G7800A series)
MIB: MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control

Switch Properties

Priority Queues: 8
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups and Multicast Route: 1000
MAC Table Size: 16 K
Packet Buffer Size: 12 Mbit
DRAM Size: 128 MB
Flash Size: 16 MB
Jumbo Frame Size: 9.6 KB
Switching Fabric Capacity:
     ICS-G7748A/G7848A: 96 Gbps
     ICS-G7750A/G7850A: 136 Gbps
     ICS-G7752A/G7852A: 176 Gbps
Forwarding Rate: Max. 130.95 Mpps (packets per second)


Gigabit Ethernet: 12 slots for 4-port interface modules, 10/100/1000BaseT(X) or 100/1000BaseSFP slots
10 Gigabit Ethernet: 2 or 4 10GbE SFP+ slots (ICS-G7750A/G7850A and ICS-G7752A/G7852A only)
Console Port: USB-serial console (Type B connector)
Storage Port: USB storage (Type A connector for ABC-02-USB)
LED Indicators: STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 1/2/3/4 for 10GbE port (ICS-G7750A/G7850A and ICS-G7752A/G7852A only)
Alarm Contact: 1 relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs:
     1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state “1”
     -30 to +1 V for state “0”
     Max. input current: 8 mA

Power Requirements

Input Voltage: 110/220 VAC (85 to 264 VAC)
Input Current:
     ICS-G7748A/G7848A: Max. 1.02/0.6 A @ 110/220 VAC
     ICS-G7750A/G7850A: Max. 1.1/0.64 A @ 110/220 VAC
     ICS-G7752A/G7852A: Max. 1.19/0.68 A @ 110/220 VAC
Overload Current Protection: Present
Reverse Polarity Protection: Present

Physical Characteristics

Housing: IP30 protection
Dimensions: 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
Weight: 12.9 kg
Installation: 19’’ rack mounting

Environmental Limits

Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
     EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
     EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
     EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

MTBF (mean time between failures)

     ICS-G7748A/G7848A: 314,973 hrs
     ICS-G7750A/G7850A: 282,329 hrs
     ICS-G7752A/G7852A: 274,488 hrs
Database: Telcordia (Bellcore), GB


Warranty Period: 5 years
