IES206-2GS, Unmanaged Industrial Ethernet Switch, 2 ports 1000M SFP(SFP slot) +4 ports 10/100Base-T(X) (RJ45), dual power supply 12~48VDC, -40~75°

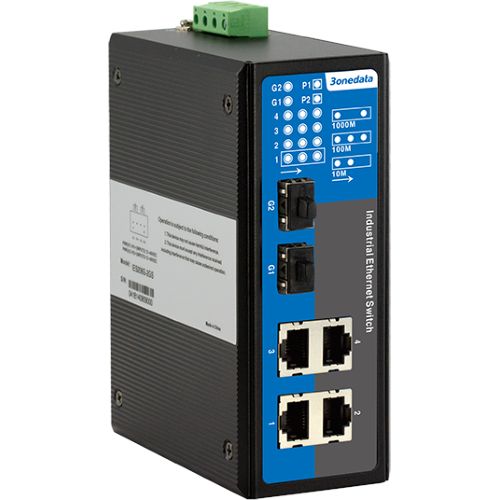

IES206-2GS
Unmanaged Industrial Ethernet Switch, 2 ports 1000M SFP(SFP slot) +4 ports 10/100Base-T(X) (RJ45), dual power supply 12~48VDC, -40~75°
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Introduction
IES206 series are 6-port 100M/gigabit unmanaged industrial Ethernet switches. The series provide 100M copper ports, gigabit fiber ports and SFP slots. They also adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different application scenes.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields
Features
- Support 2 gigabit fiber ports(SFP slots or ST/SC/FC optional) and 4 100M copper ports
- Support dual power supply, input voltage: 12~48VDC
- Support -40~75℃ wide operating temperature range
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3z for 1000Base-X
Interface
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control,
Full/Half Duplex Mode, MDI/MDI-X Autotunning
SFP slot: 1000Base-SFP
LED Indicator
Running Indicator, Port Indicator, Power Supply Indicator
Switch Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 1Mbit
Backplane bandwidth: 7.6G
Switch time delay: <10μs
Power Requirement
12~48VDC, 4-pin 7.62mm pitch terminal blocks dual power supply redundancy, non-polarity, reverse connection protection
Power Consumption
No-load(@24VDC):
Full-load(@24VDC):
Environmental Limit
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95%(no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting or wall mounting
Dimension (W x H x D): 53mm×136mm×105mm（IES206-2GS）
53mm×138mm×110mm（IES206-2GF）
Industrial Standard
IEC 61000-4-2 (ESD), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT), Level 4
Power supply: ±4kV
Ethernet port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode ±4kV, differential mode±2kV
Ethernet port: ±2kV
Relay: common mode±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty
5 years
