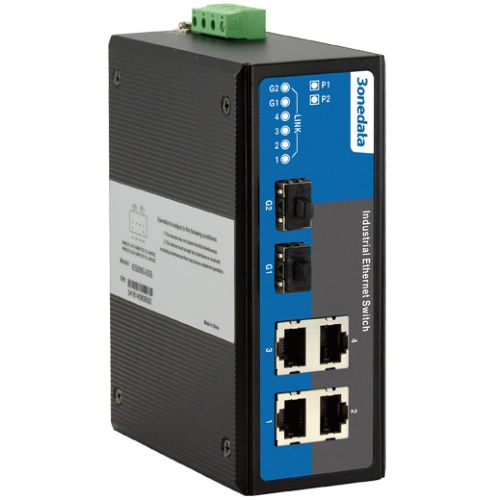

IES206G-2GS, Unmanaged Industrial Ethernet Switch, 2 ports 1000M SFP(SFP slot) + 4 ports 10/100/1000Base-T(X) (RJ45), dual power supply 12~48VDC
IES206G-2GS
Unmanaged Industrial Ethernet Switch, 2 ports 1000M SFP(SFP slot) + 4 ports 10/100/1000Base-T(X) (RJ45), dual power supply 12~48VDC
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Introduction
IES206G-2GS is 6-port full Gigabit layer 2 unmanaged industrial Ethernet switches. The product provides Gigabit copper port and SFP slot. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes. Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
Features
- Support 2 Gigabit fiber ports (SFP slots), 4 Gigabit copper ports
- Support dual power supply input, input voltage: 12~48VDC, nonpolarity, reverse polarity protection
- Support -40~75℃ wide operating temperature range
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
Interface
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control,
Full/half Duplex Mode, MDI/MDI-X Autotunning
SFP slot: 1000Base-X
LED Indicator
Speed Indicator, Port Indicator, Power Supply Indicator
Switch Property
Transmission mode: store and forward
MAC address: 1K
Packet buffer size: 1Mbit
Backplane bandwidth: 12G
Switch time delay: <10μs
Power Requirement
12~48VDC
Dual power supply redundancy, nonpolarity, reverse polarity protection
Power Consumption
No-load: 1.44W@24VDC
Full-load: 4.34W@24VDC
Environmental Limit
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95%（no condensation）
Physical Characteristic
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Weight: 0.69kg
Dimension (W x H x D): 53mm×138mm×110mm
Industrial Standard
IEC 61000-4-2 (ESD), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL61010
Warranty
5 years
