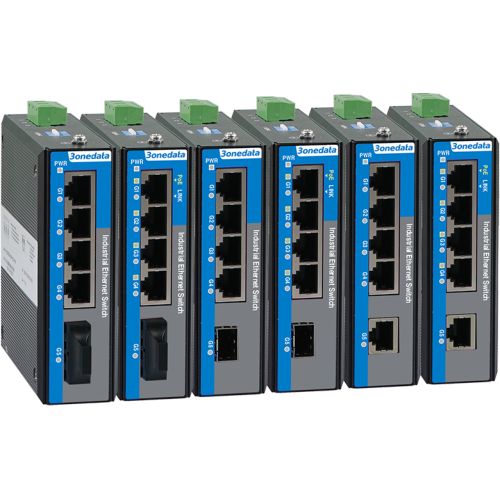

IES2305-5GT-P220 3onedata Gigabit Unmanaged Switches

IES2305-5GT-P220 3onedata


Industrial unmanaged switch 5 port 10/100/1000Base-T(X) (RJ45), single power supply, 100-240VAC/DC


Prezzo per pezzo

€ 161,84

(IVA esclusa)

€ 197,44 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 197,44

Disponibilità: 25 gg lav


SKU: 130637

Model: IES2305-5GT-P220

Bisogno di aiuto?


IES2305 series are 5-port unmanaged industrial PoE Ethernet switches. This series provide 9 products to choose from and support Gigabit fiber ports, Gigabit copper ports, Gigabit PoE copper ports and Gigabit SFP, as well as multiple power supply schemes, 100~240VAC, 12~48VDC and 48VDC PoE. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
The DIP switch could implement functions like jumbo frame, one-key VLAN, 100M port and flow control. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.


  • Support 5 optional Gigabit PoE/Non-PoE fiber/copper ports
  • Non-PoE product supports optional 100~240VAC/12~48VDC power supply input
  • Support -40~75℃ wide operating temperature range


Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100BaseFX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1Q for VLAN


5Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning


Port Indicator, Power Supply Indicator, PoE Indicator

Switch Property

MAC address: 2K
Backplane bandwidth: 9.125G
Transmission mode: store and forward
Switch time delay: <10μs

Power Supply


Working Environment

Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight≤ 367g

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV
Signal: ±2kV
IEC 61000-4-5 (Surge), Level 4
Power supply: differential mode±2kV, common mode±4kV
Signal: differential mode±2kV, common mode±4kV
Shock: IEC 60068- 2- 27
Free fall: IEC 60068- 2- 32
Vibration: IEC 60068- 2- 6




5 years
